DVBMosaic

Real-time Mosaic overview and monitoring

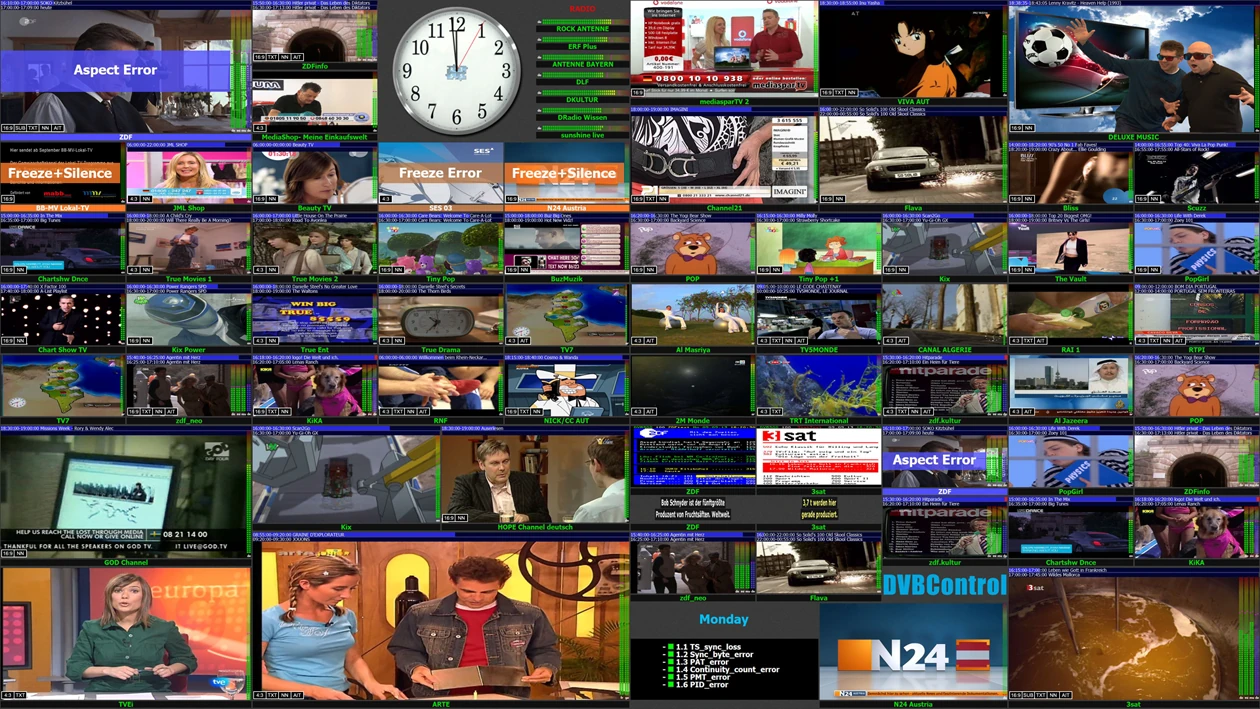

Real-time mosaic overview showing multiple services received from multiple Transport Streams.
Detection, visualization and signaling of freeze, black, silence, PID lost, service lost and input lost behavior.
Intuitive configuration for multiple walls, which can decode MPEG-2/AVC/HEVC Video, MPEG, AAC and Dolby® Audio, Teletext and DVB-Subtitles. Walls can be completed using clocks and graphics.

Features

Freeze detection
Black detection
Silence detection
Input Lost detection
PID Lost detection
Service Lost detection
Multiple walls
Acknowledge mode
Visual signalling
Audio alerts
SNMP traps
Mail alerts
DVBMonitor connectivity

MPEG-2 / AVC (H.264) / HEVC (H.265) video
MPEG / AAC / Dolby® Digital + / Dolby® E audio
Web enabled
Remote control
Round Robin
Teletext
DVB-subtitles
Clocks
Images
Preferences
Aspect ratio detection
ETR-290 (Level 1) measurements

Input Support

File, HD/SD SDI, ASI, DVB-C, DVB-T/T2, DVB-S/S2, DVB-H, Unicast, Multicast
Live OTT Streaming (RTSP/RTMP/RTP/HLS/Smooth Streaming)

(Click on pictures, to enlarge)

Type	Description
Software Base
DC-Base	DVBMosaic base software license, including 10 License Points
DCL-Base	DVBMosaic Light base software license, including 10 Light License Points*
Software Options
DC+10	10 extra License Points
DCL+10	10 extra Light License Points (Can only be used with DCL-Base License)
DC+DD5	5 Dolby ® Digital Plus decoders
DC+DD20	20 Dolby ® Digital Plus decoders
DC+DD50	50 Dolby ® Digital Plus decoders
DC+DE5	5 Dolby ® -E decoders
DC+RR	Automatic Round Robin cycling between different Wall configurations

* ‘Light’ means no checks are enabled.

License Point System

1 SD TV Service = 1 License Point
1 HD TV Service = 2 License Points
1 UHD TV Service = 4 License Points
1 LD TV Service = 0,5 License Point

Every TV service has 1 Video and 1 Audio component
Video: MPEG-2, AVC, HEVC
Audio: MPEG, AAC
For Dolby decoding, extra Dolby licenses are needed

1 Teletext or DVB-Subtitle = 0,5 License Point
1 Audio = 0,2 License Point
1 PID Monitor = 0,2 License Point
ETR-290 Level 1 (MPTS) = 1 License Point
ETR-290 Level 1 (SPTS) = 0,2 License Point

Release

Description	Version	Download	Size
Manual	March 2018		8 MB
Application 64bit (dongle required)	05 March 2018 V311.0		45 MB

Beta Release

Description	Version	Download	Size
Application 64bit (dongle required)	12 September 2018 V311.34		45 MB

General

Description		Download	Size
DVBMosaic Flyer			29 MB
DVBControl Brochure			4 MB
General Terms and Conditions			250 kB
