DVBAnalyzer analyzes MPEG transport streams and SDI signals. For DVB, ATSC (PSIP), ATSC 3.0 and ISDB it goes from high-level summary overviews down to the interpretation of every bit: ETR 290 (ETSI TR 101 290) compliance, PSI/SI/PSIP tables, SCTE-35, bitrates, and video and audio quality.
For SDI and SMPTE 2022-6 it shows the raw picture with waveform, vectorscope, CIE 1931 and gamut scopes, 16-channel embedded audio, the ancillary data with its ST 352 payload ID, and EDH and line CRC checks.
Input comes from files, DVB-ASI, DVB-C, DVB-T/T2 and DVB-S/S2 receivers, unicast and multicast IP (with SMPTE 2022-7), SRT, HTTP-TS, live OTT streams (HLS, MPEG-DASH, Smooth Streaming, RTSP, RTMP, RTP) and SDI/NDI.
By quickly identifying the fields of interest, DVBAnalyzer helps developers, broadcasters, system integrators and field engineers during maintenance, development and testing of equipment, networks and services. For 24/7 monitoring of many streams, see DVBMonitor; for a multiviewer wall, see DVBMosaic.
Further reading: guides to ETSI TR 101 290 (ETR 290) checks, SCTE-35 splice messages, OTT stream monitoring (HLS, MPEG-DASH, SRT) and loudness measurement (BS.1770, EBU R128, ATSC A/85).
Features
Structure and signaling
- PID structures
- Service structures
- SI/PSI/PSIP structures
- Grid overview
- Table overview
- Descriptor overview
- NIT overview
- Logical Channel overview
- MIP overview
- AIT viewer
- FastScan viewer
- Private Data
- Hex Viewer
- Filtering
Compliance, timing and bitrate
- ETR-290 compliance
- PCR timing
- PTS-DTS timing
- Timing Viewer
- GOP structures
- Buffer behavior
- Bitrate measurement
- Bitrate distribution
- Burst Viewer
- Logging and SNMP traps
Video and audio
- Media Viewer
- Thumb overview
- Video Quality
- 3D
- Audio measurement
- Loudness measurement (EBU R128, ITU-R BS.1770)
- Audio metadata
- Dolby® Digital and Digital Plus
- Dolby® E and Dolby AC-4
- MPEG-H 3D Audio
Data and services
- EPG
- Teletext
- Subtitling (DVB, TTML, CEA-708)
- RDS
- Object/Data Carousels
- DSM-CC Stream Events
- SCTE-35 Viewer
- VBI-Cue Viewer
- IP Traffic
- DVB-T2 Viewer
- DVB-H analyzing
- ATSC 3.0 overview
- UDP Multicast output
- Layout Manager, multiple views
- Plugins and Preferences
Supported codecs
Recognized in the PID and service trees, played by the Media Viewer, and carried through the video and audio tools.
Video
- MPEG-1 Video
- MPEG-2 Video (H.262)
- AVC (H.264)
- HEVC (H.265), up to 4K HDR
- VVC (H.266)
- AV1
- VP9
- VC-1 (SMPTE 421M)
- AVS
- JPEG 2000
Audio
- MPEG-1/2 Audio (Layer I, II, III)
- AAC, HE-AAC (ADTS and LATM)
- Dolby® Digital (AC-3)
- Dolby® Digital Plus (E-AC-3)
- Dolby® AC-4
- Dolby® E
- MPEG-H 3D Audio
- DTS
- AES3 (SMPTE 302M, PCM)
- DAB, DAB+
The Dolby formats require their license option.
Input Support
File, DVB-ASI, DVB-C, DVB-T/T2, DVB-S/S2, DVB-H, ATSC 3.0, Unicast, Multicast, SMPTE 2022-7 (redundant network paths), SRT, HTTP-TS, Shoutcast, Live OTT Streaming (RTSP/RTMP/RTP/HLS/MPEG-DASH/Smooth Streaming) and SDI/NDI.
(Click on a picture to see it full size)
Overview

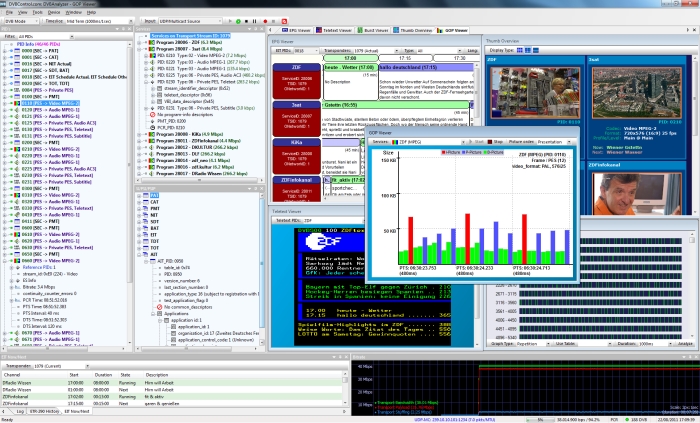

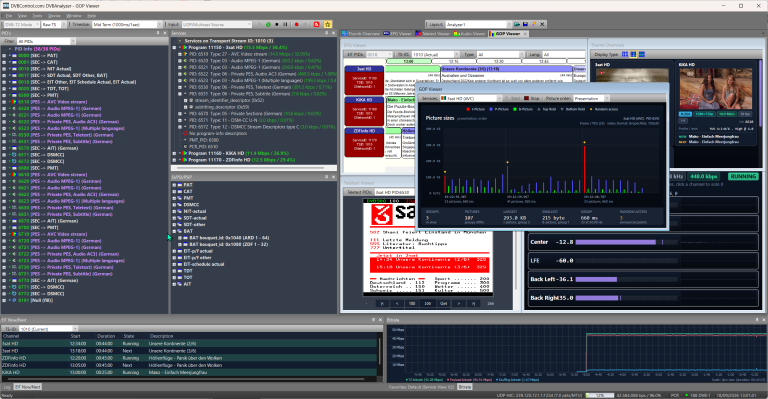

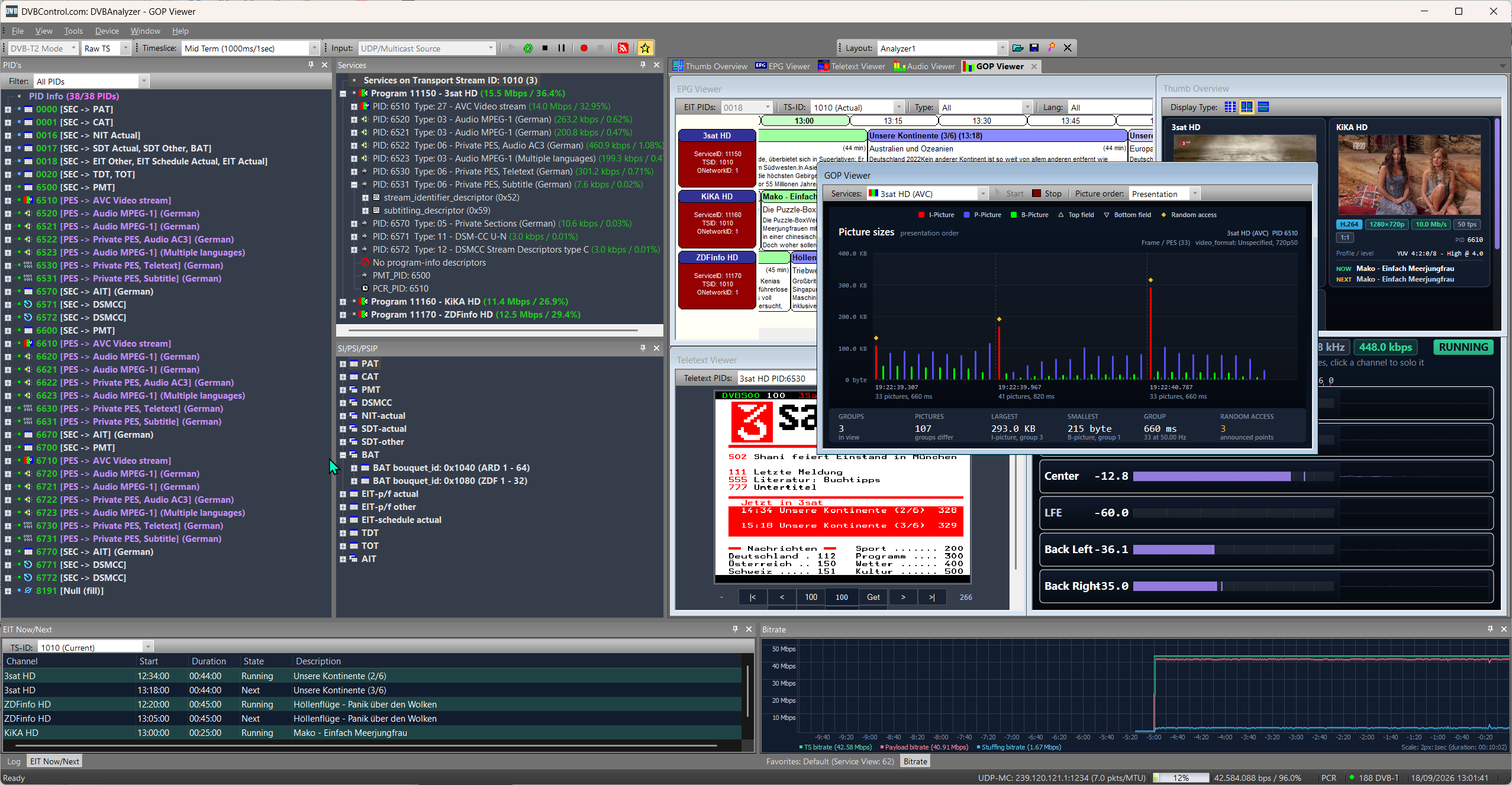

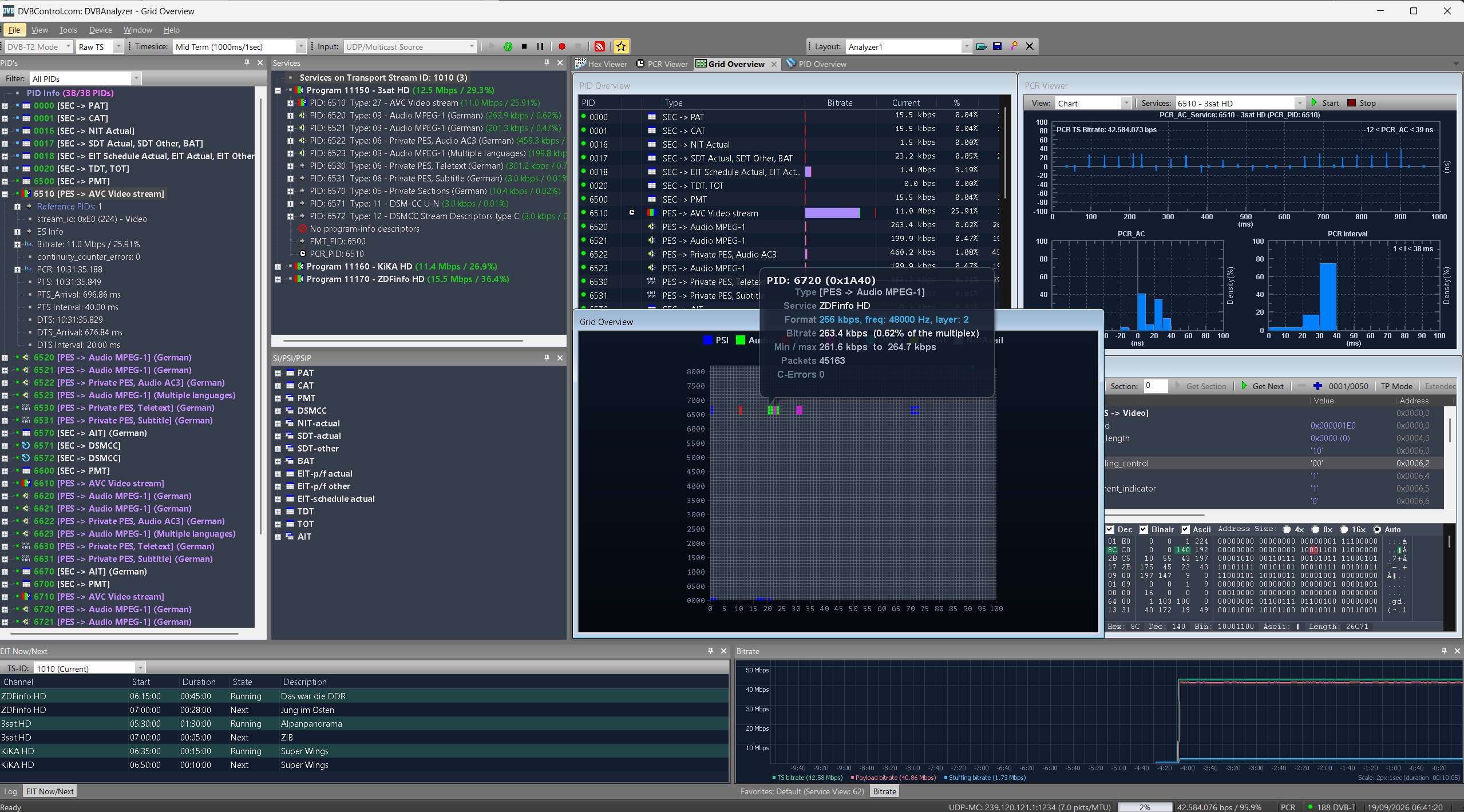

Workspace

Grid, PCR, hex and bitrate views open side by side, in one layout you can save and recall.

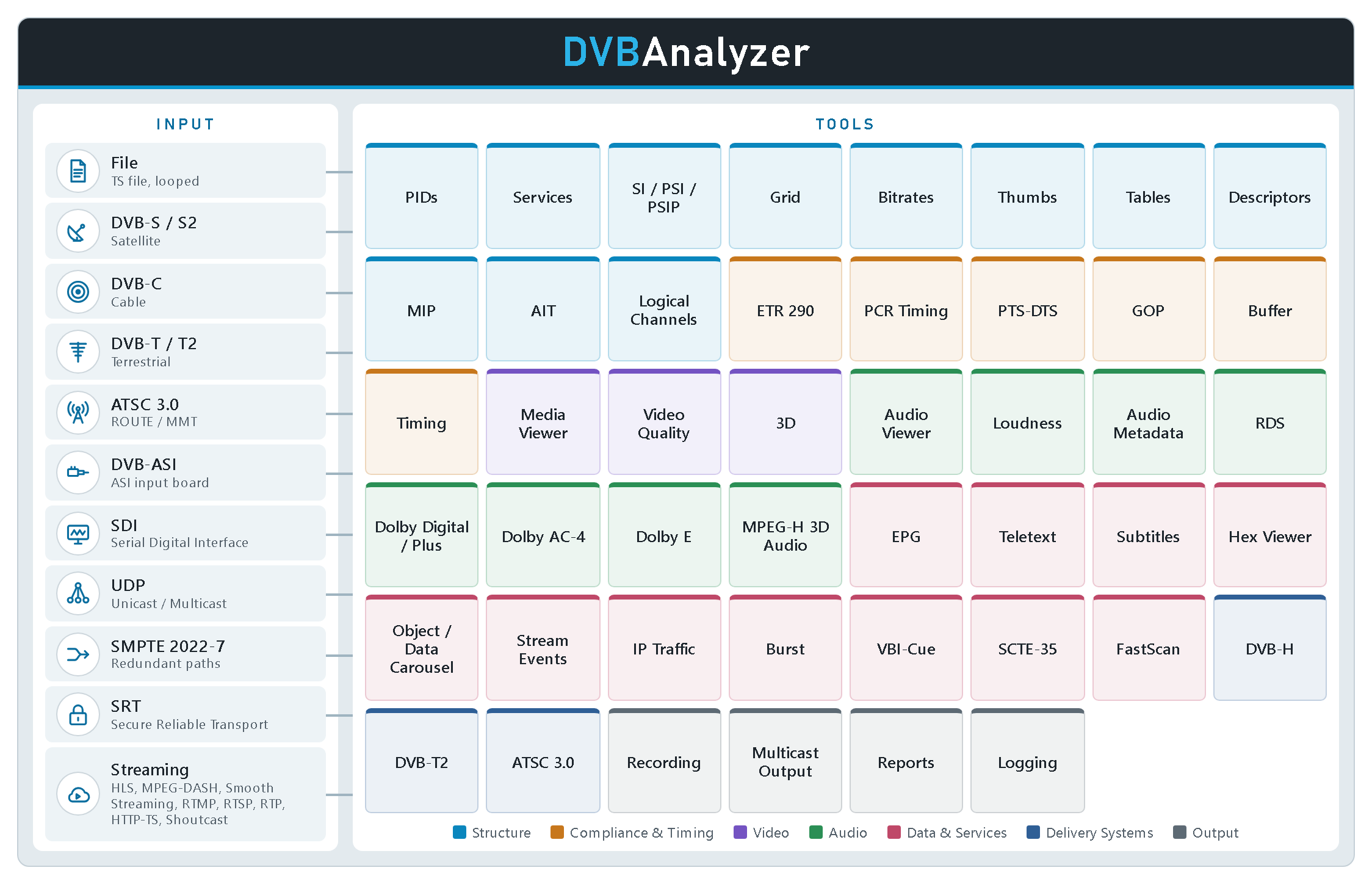

Inputs and tools

Every input DVBAnalyzer accepts, and every tool it brings to the stream.
Browsing the stream

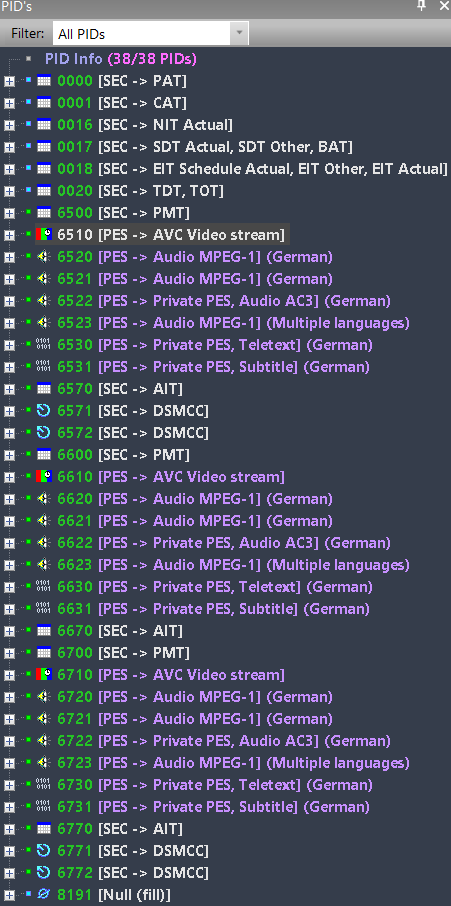

PID Bar

Every PID in the multiplex, colour-coded by type, with its service behind it.

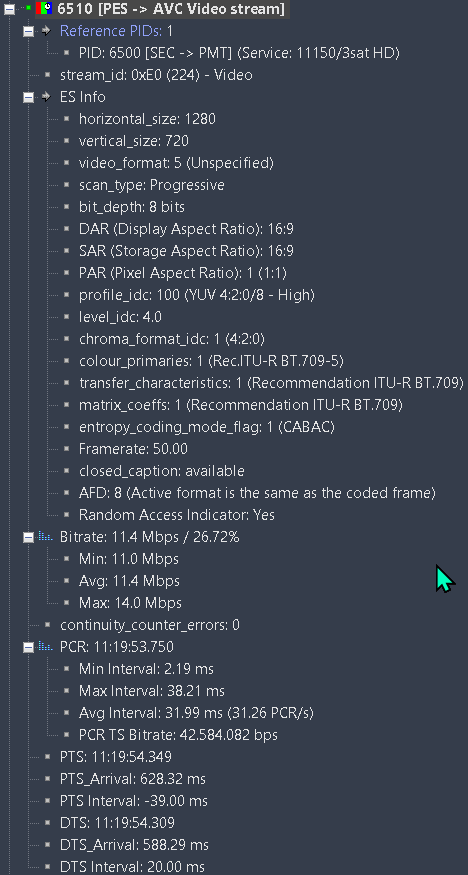

ES Info

Open a video PID and the elementary stream tells you everything: resolution, profile, level, framerate, AFD, PCR and PTS/DTS timing.

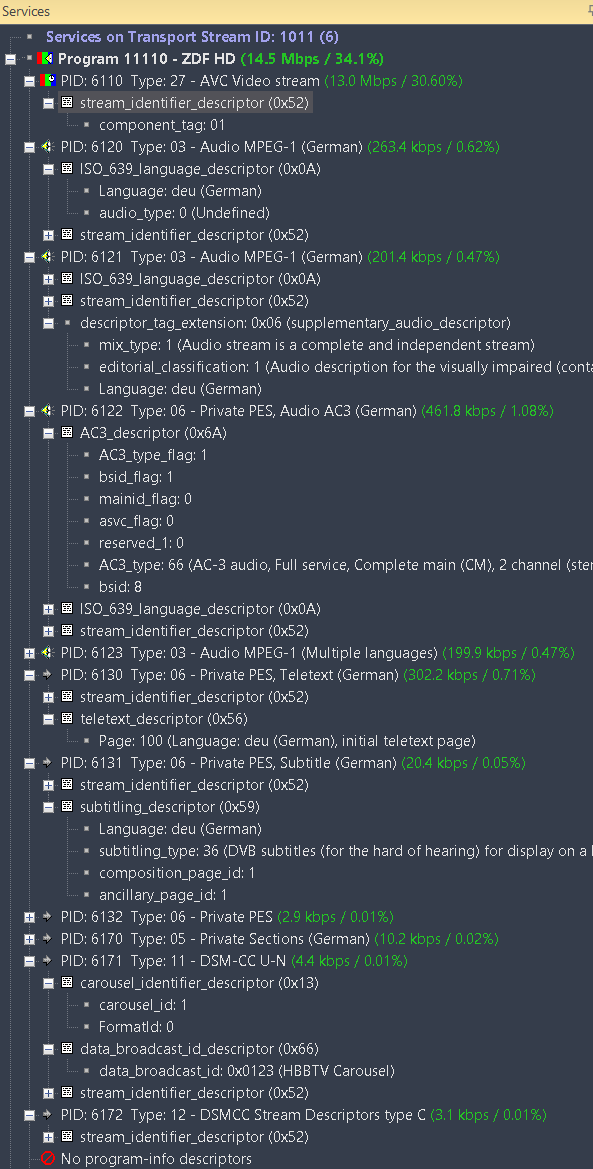

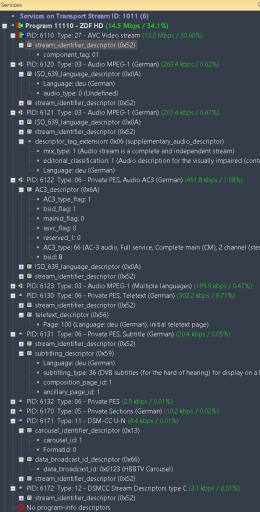

Services and descriptors

Each service with its components, and every descriptor unpacked field by field.

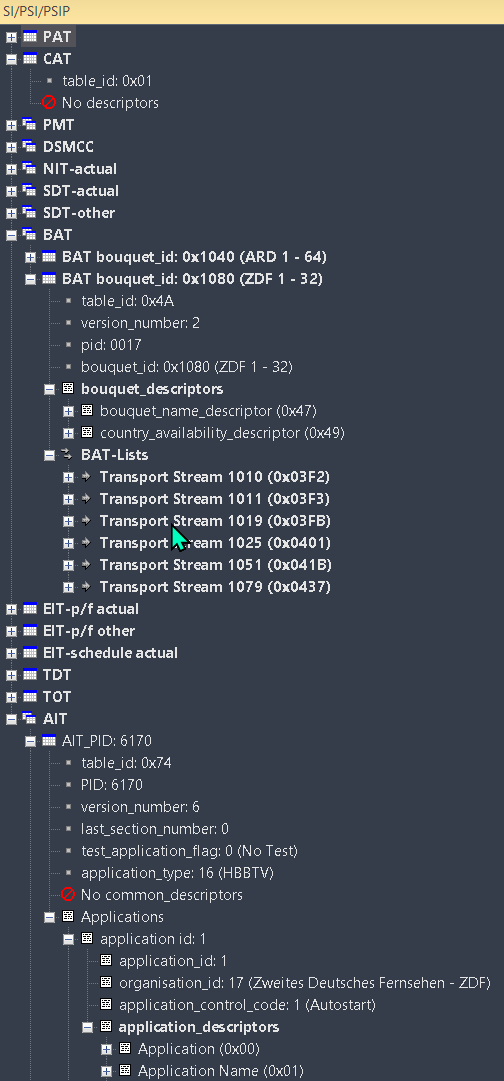

SI/PSI/PSIP

The signaling tables as a tree – PAT, CAT, PMT, NIT, SDT, BAT, EIT and the rest the stream carries – each one unpacked to its descriptors and fields.
Stream structure

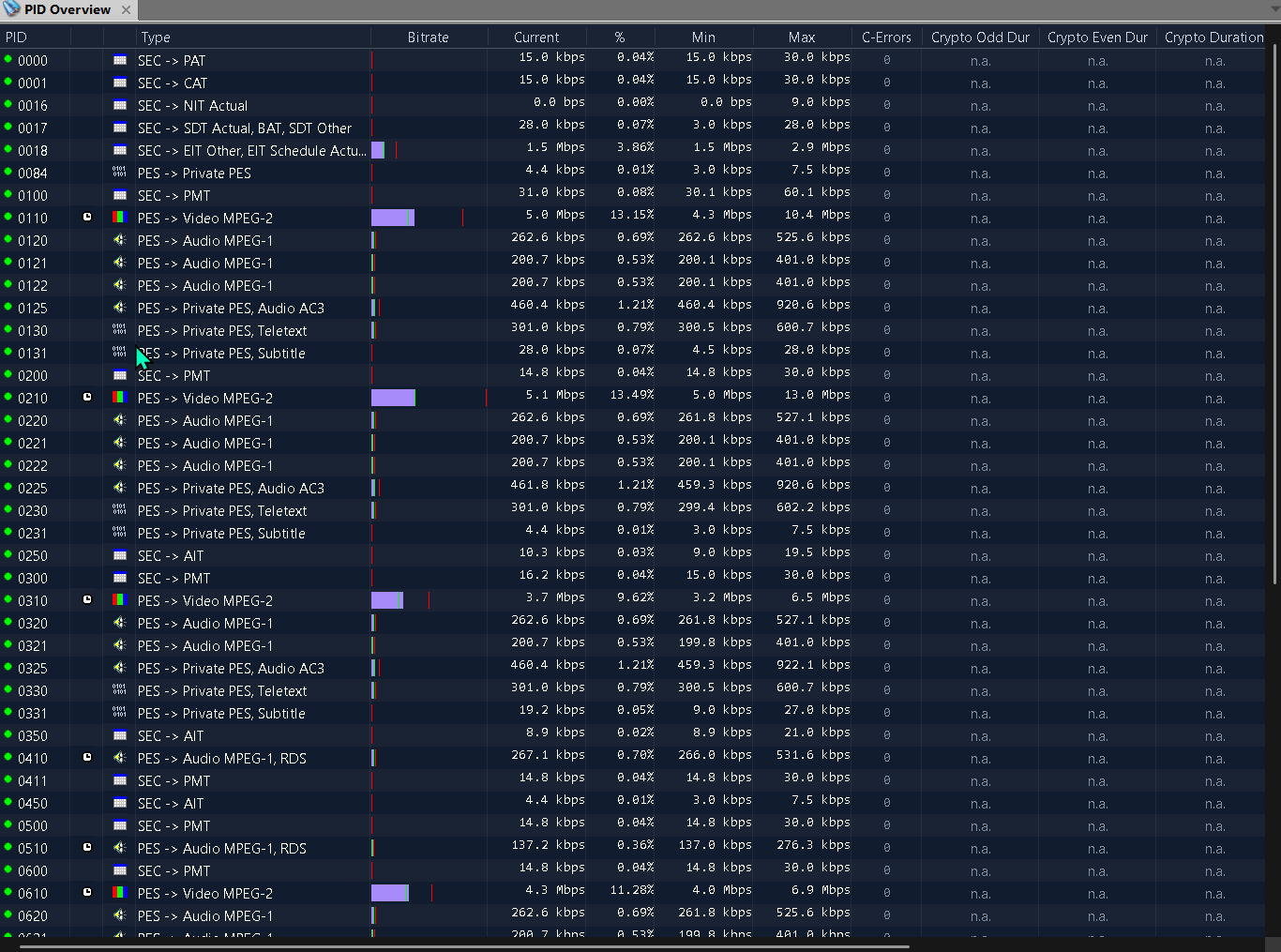

PID Overview

Every PID with its type, live bitrate, minimum, maximum and continuity errors.

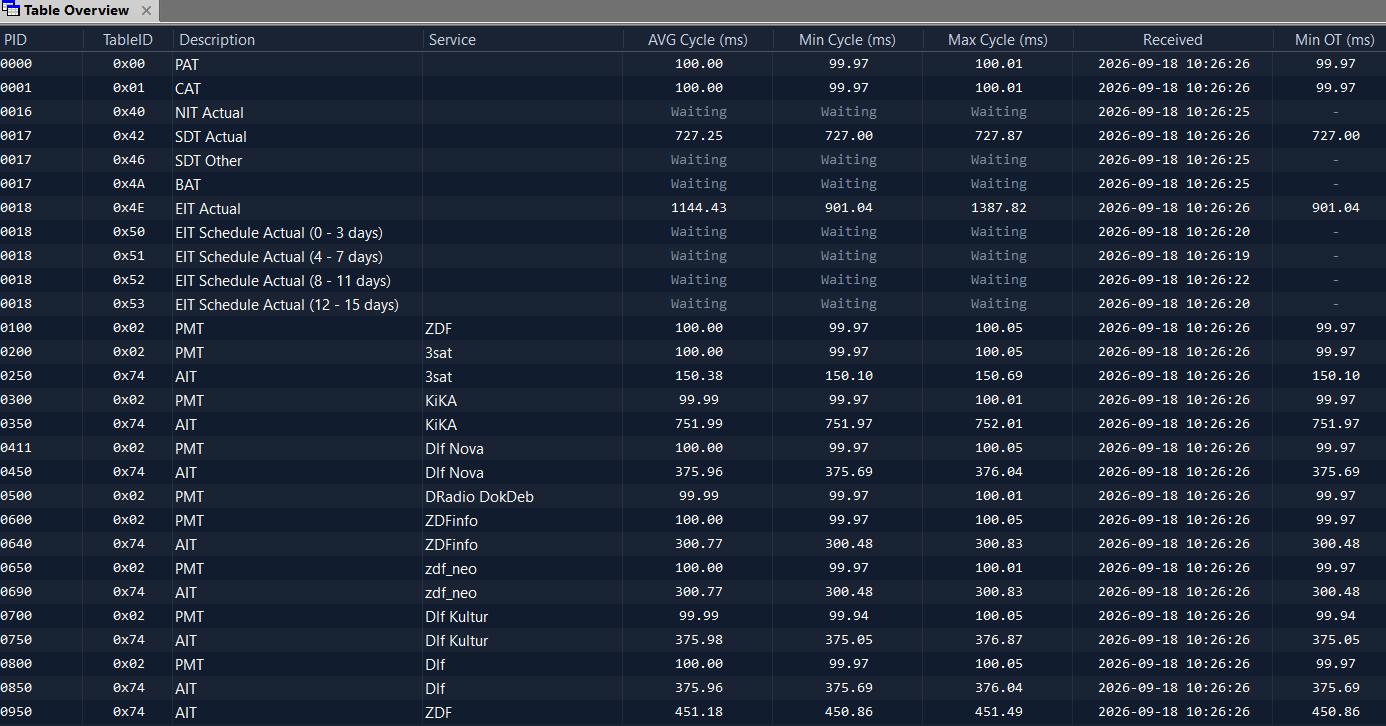

Table Overview

All SI/PSI tables with their repetition cycles, measured against the limits.

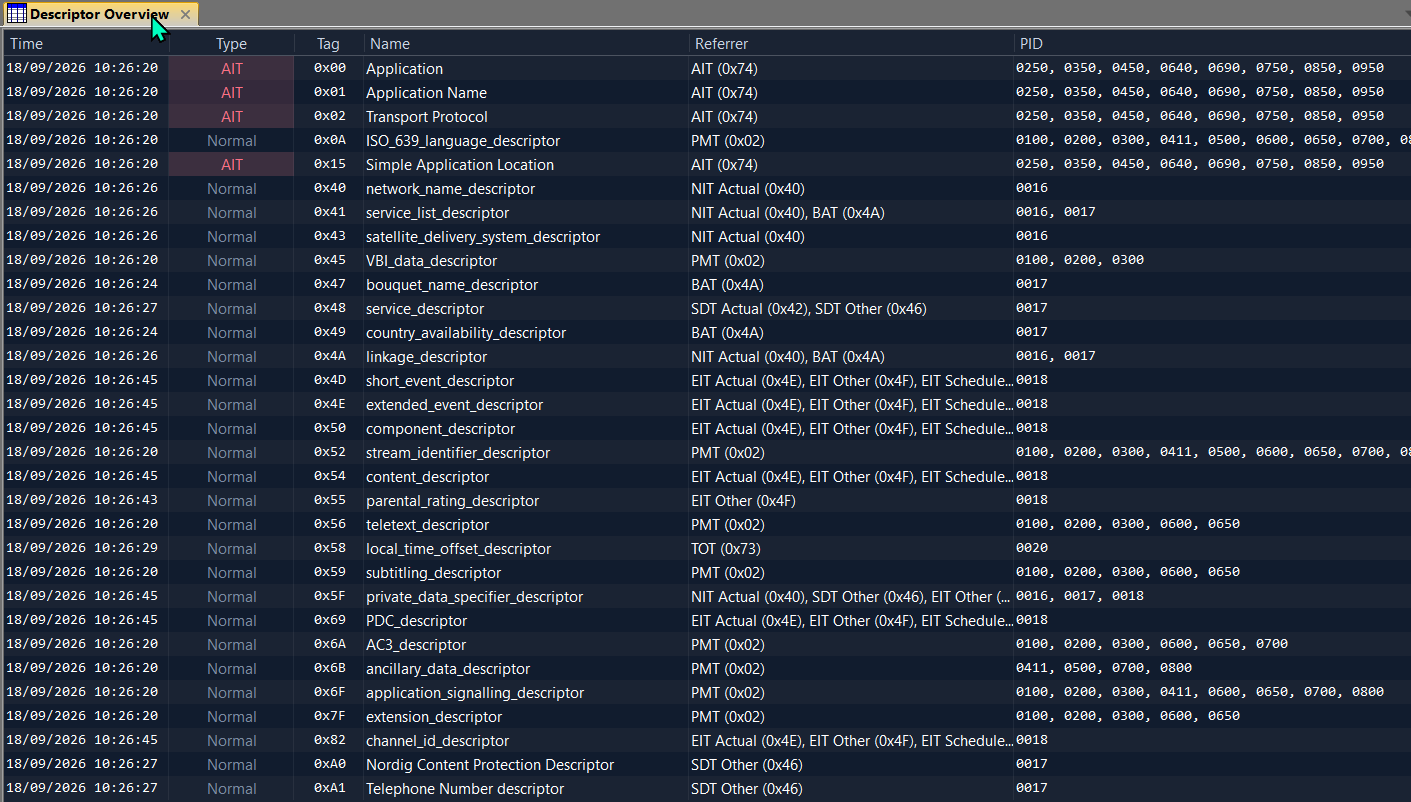

Descriptor Overview

Which descriptors appear, in which table, on which PID.

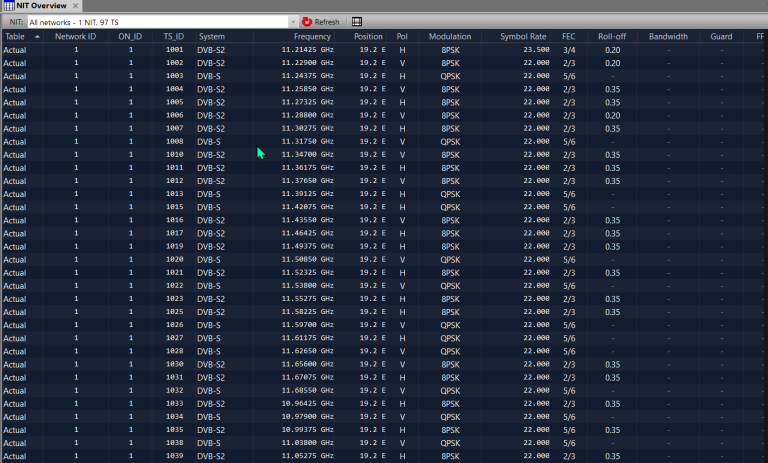

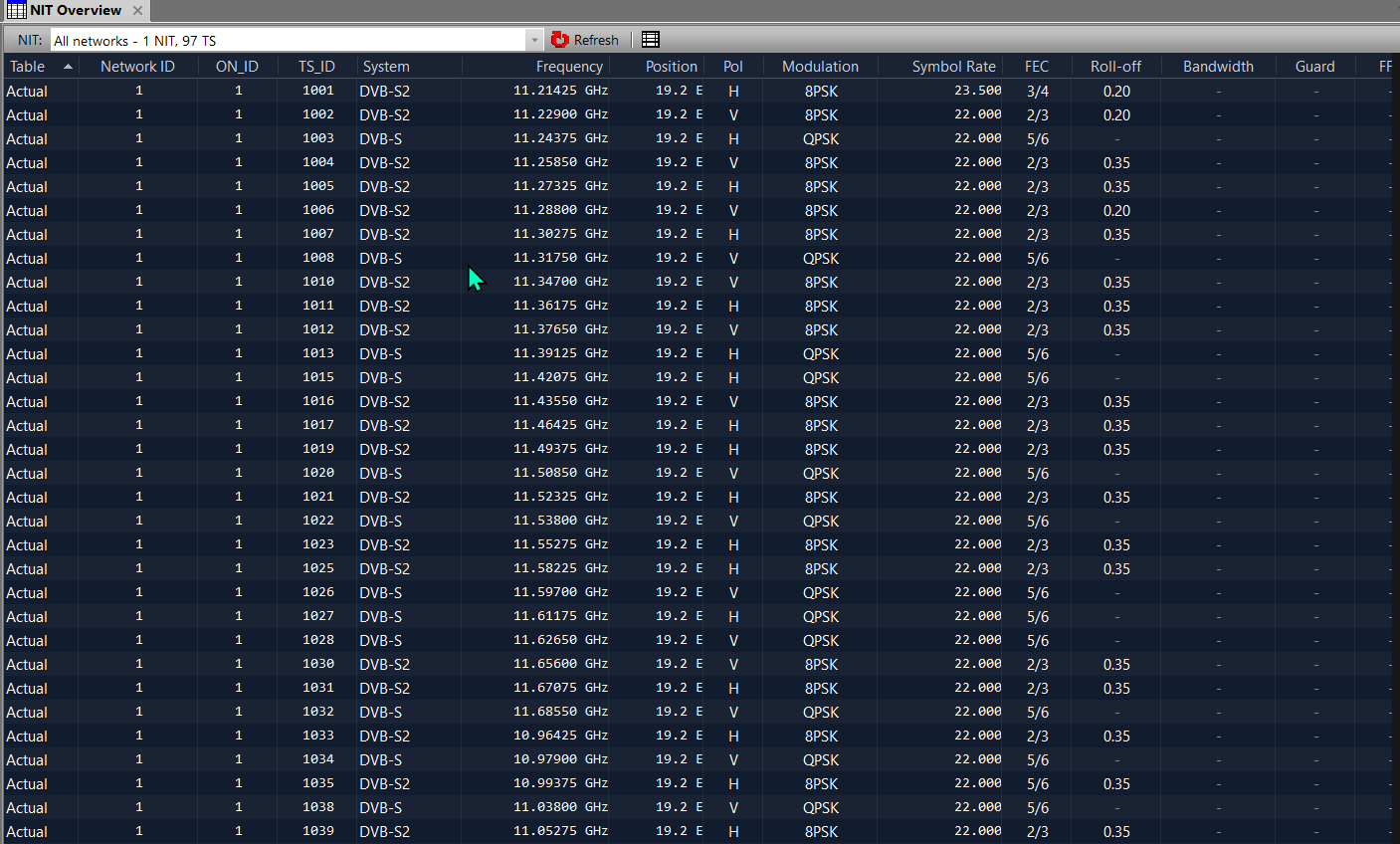

NIT Overview

The whole network laid out: frequency, modulation, symbol rate and FEC per transport stream.

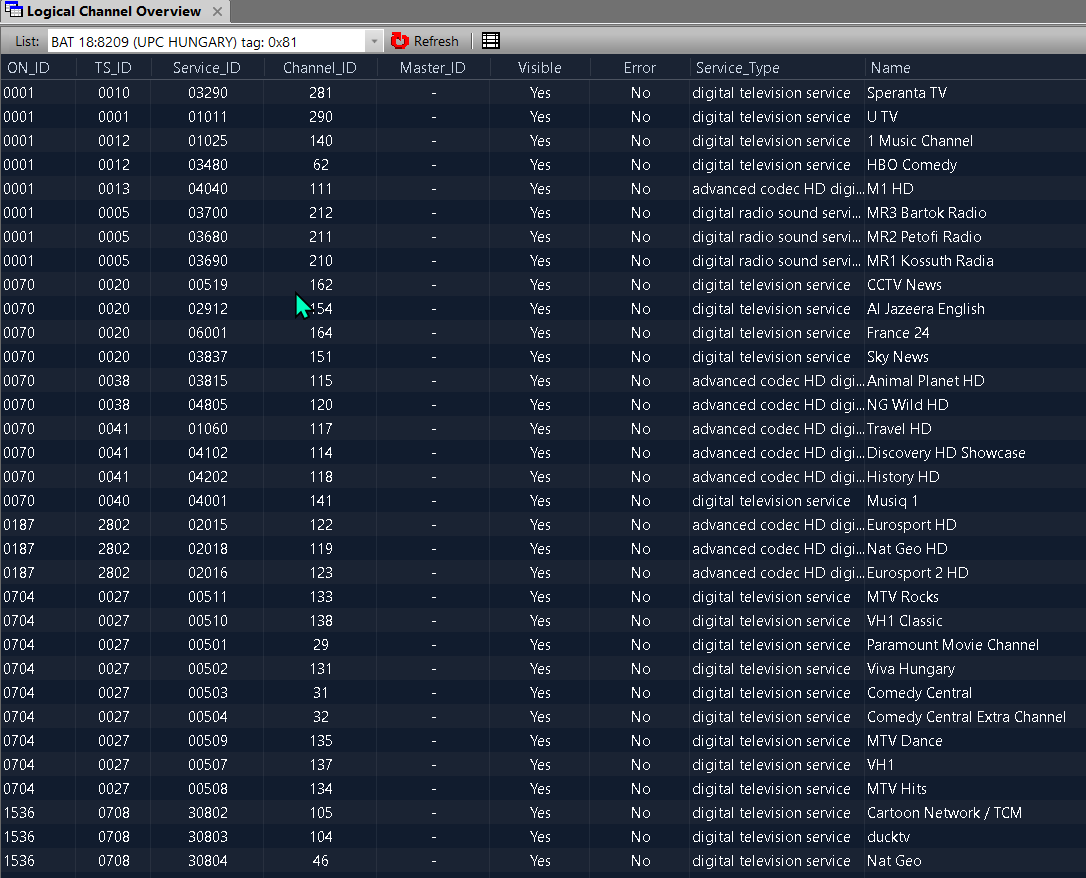

Logical Channel Overview

Channel numbering per bouquet, with visibility and conflicts flagged.

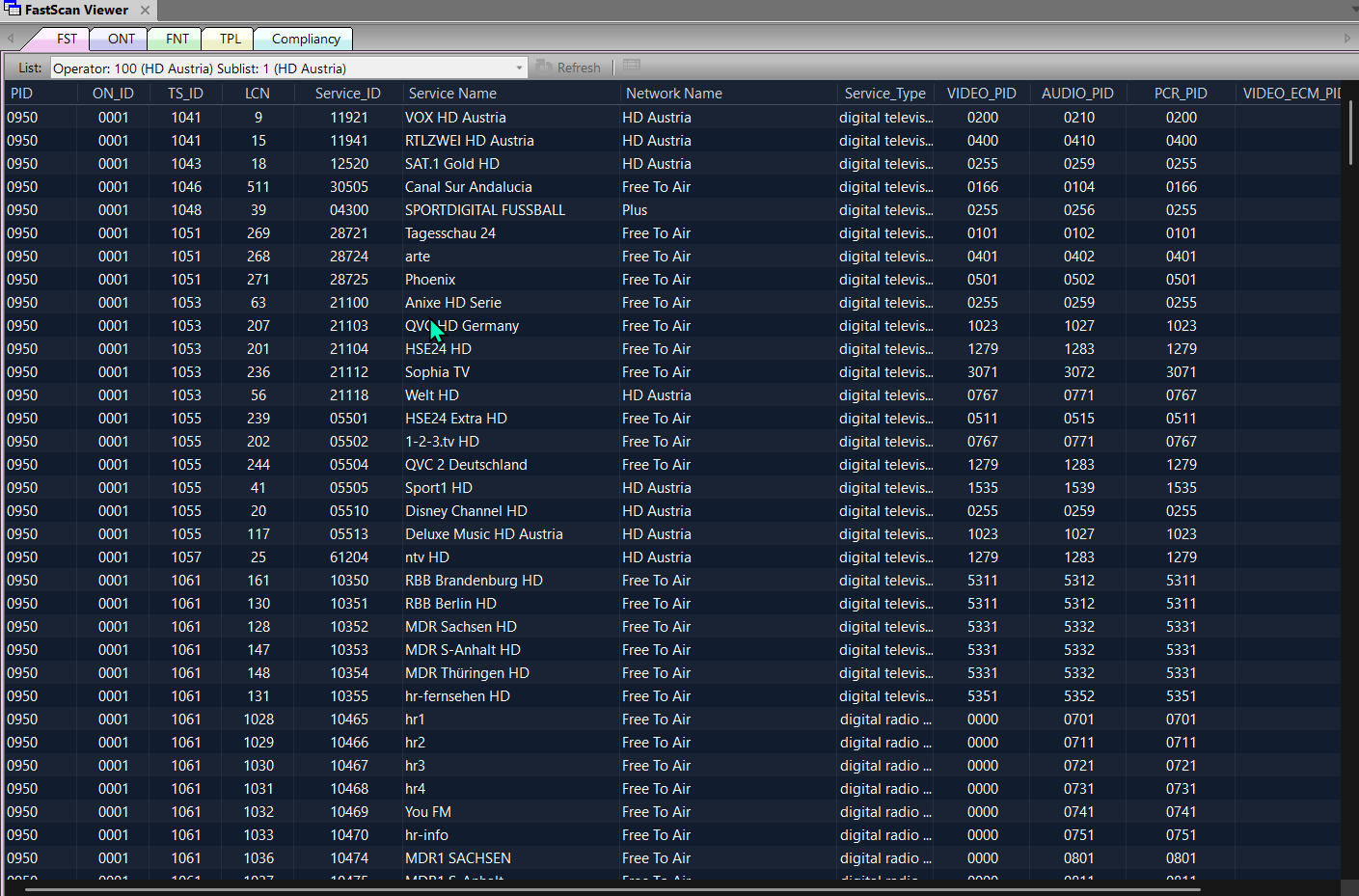

FastScan Viewer

Operator fast-scan lists (FST, ONT, FNT, TPL) with a compliancy check.
Bitrate

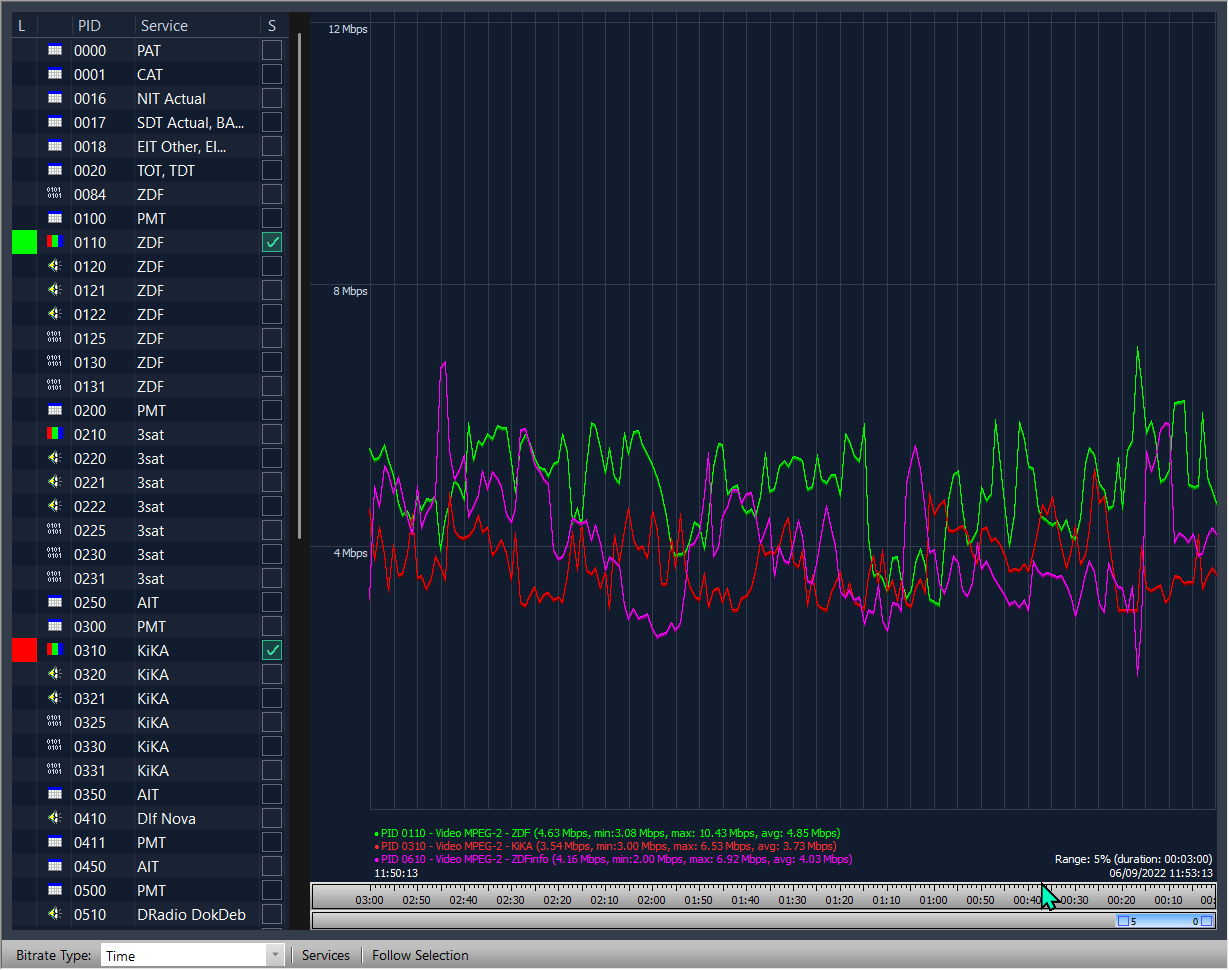

Bitrate over time

Every PID drawn over time, with its live, minimum, maximum and average rate, so a bitrate change shows itself.

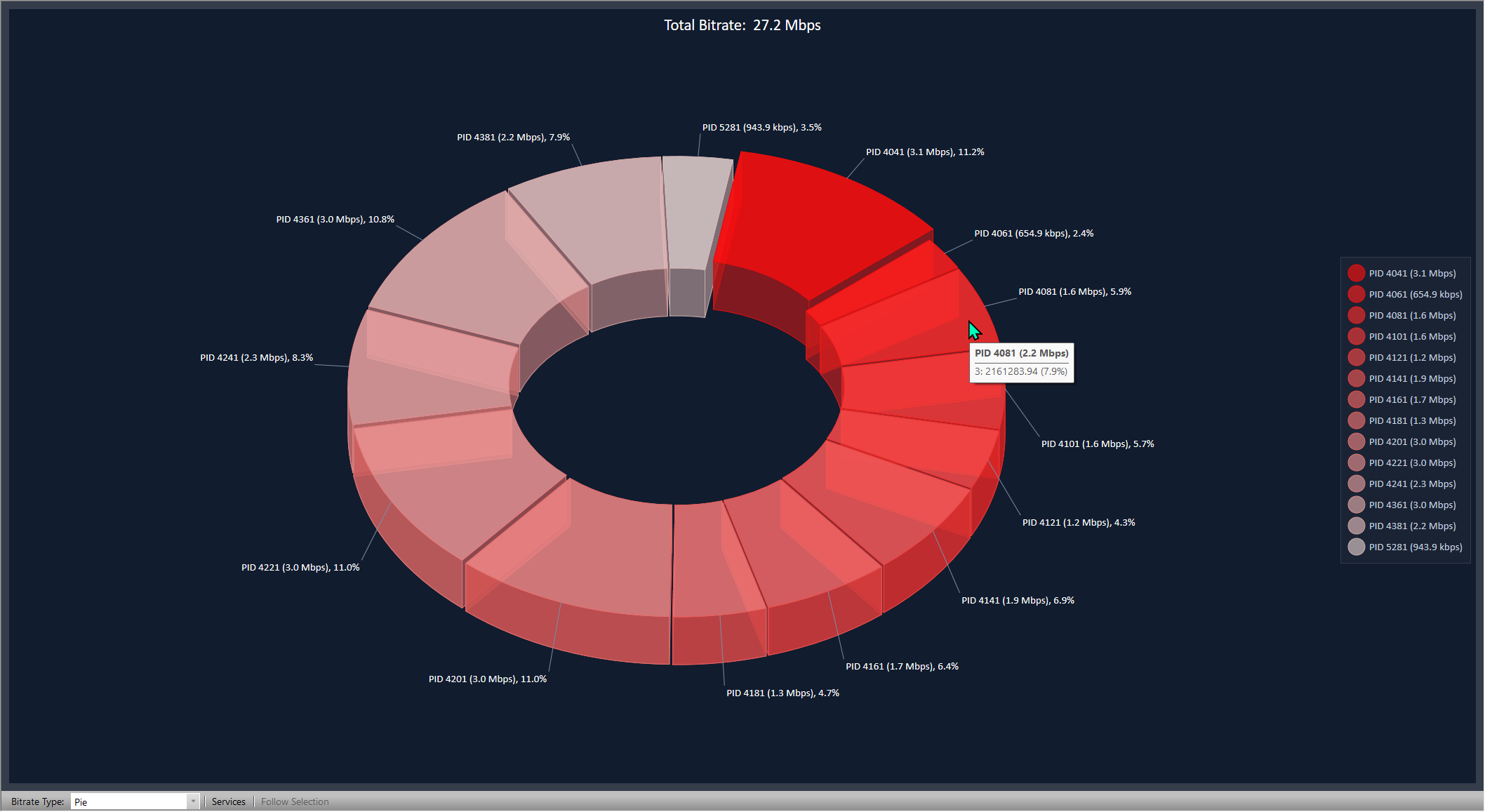

Bitrate share

Where the multiplex goes, as a share: per PID, per service, or grouped by type – video, audio, PSI and data.

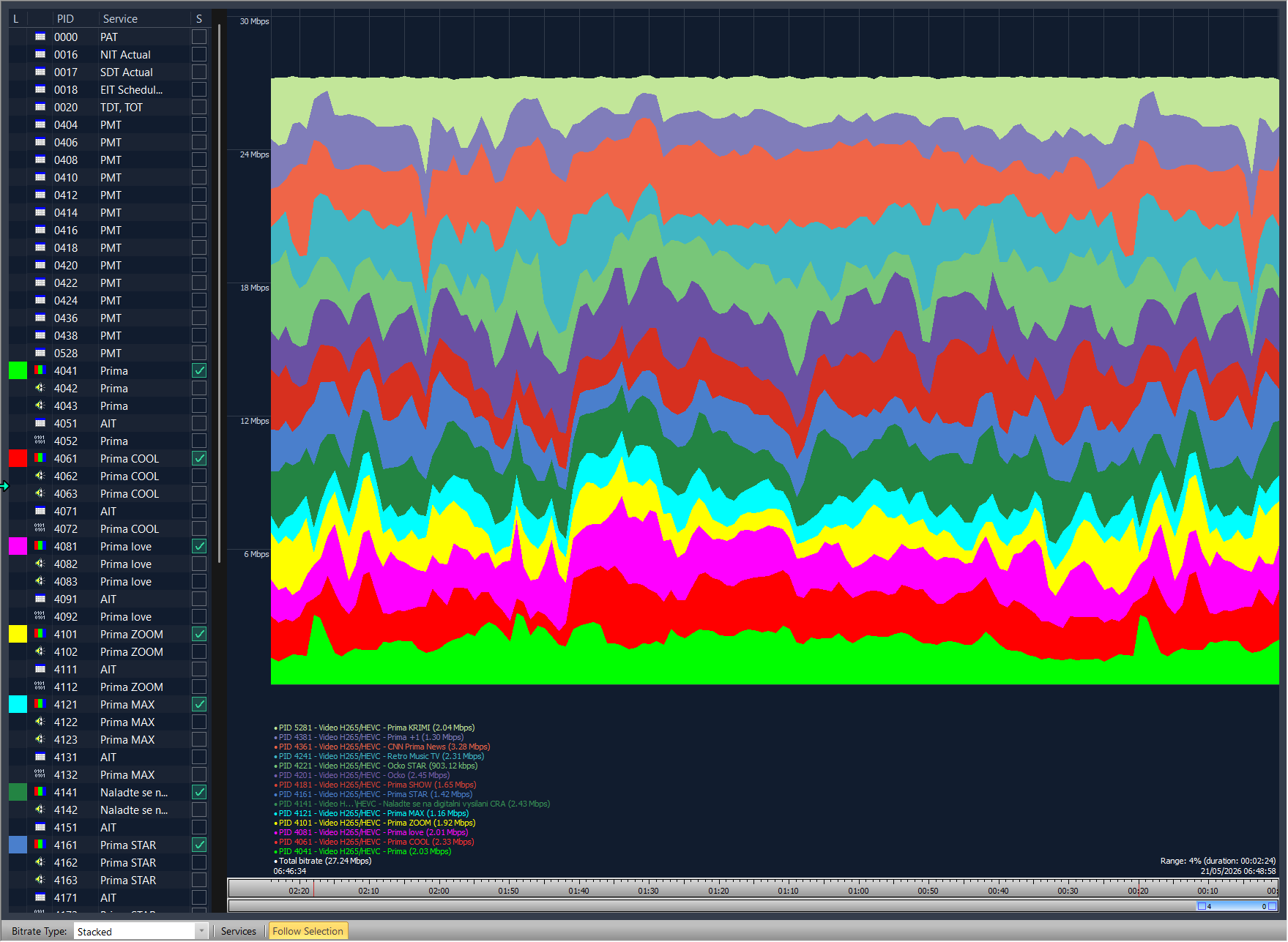

Stacked bitrate over time

Every PID stacked over time, so a bitrate change shows up at a glance.

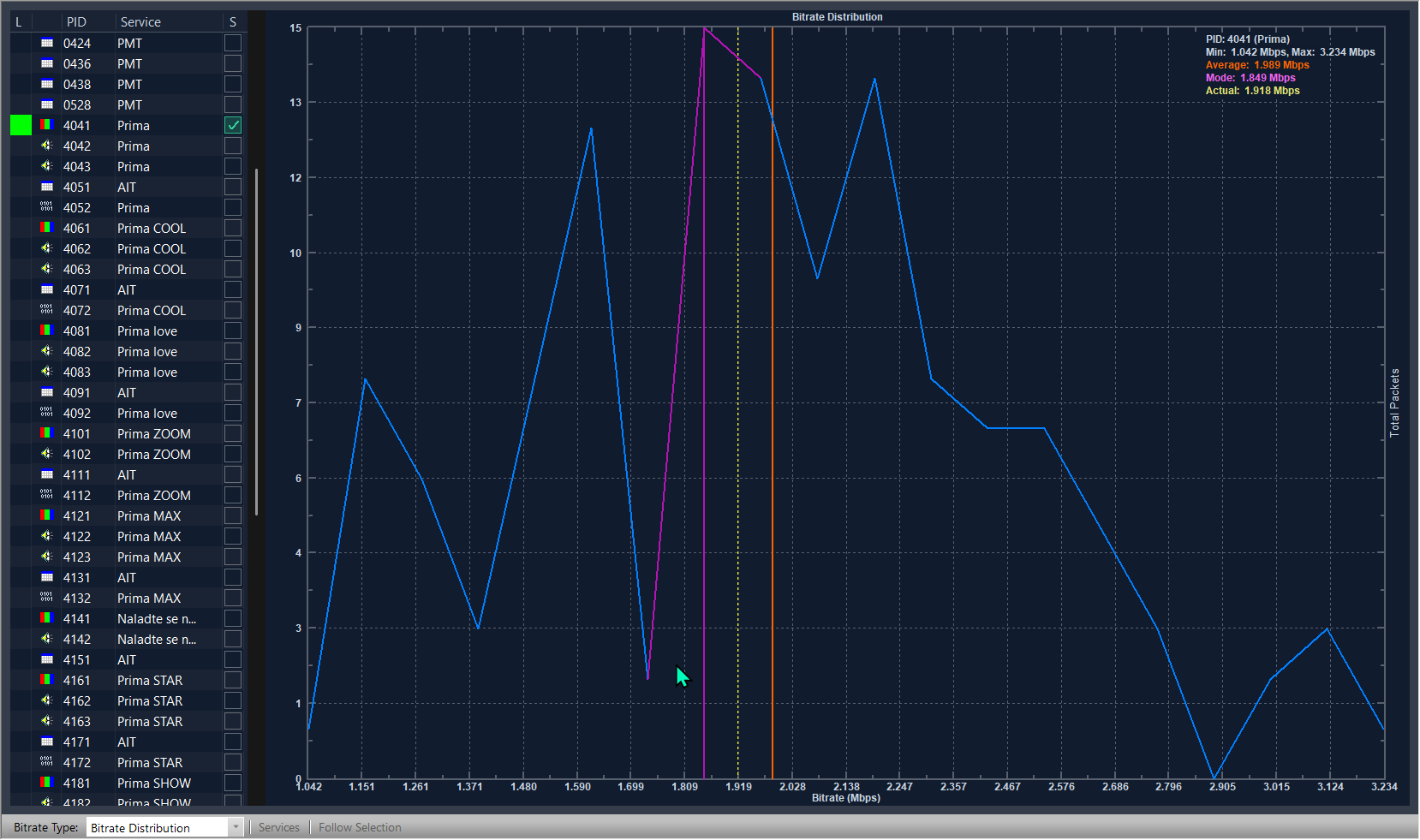

Bitrate Distribution

How often a PID sits at each rate, with its minimum, maximum, average, mode and current value.

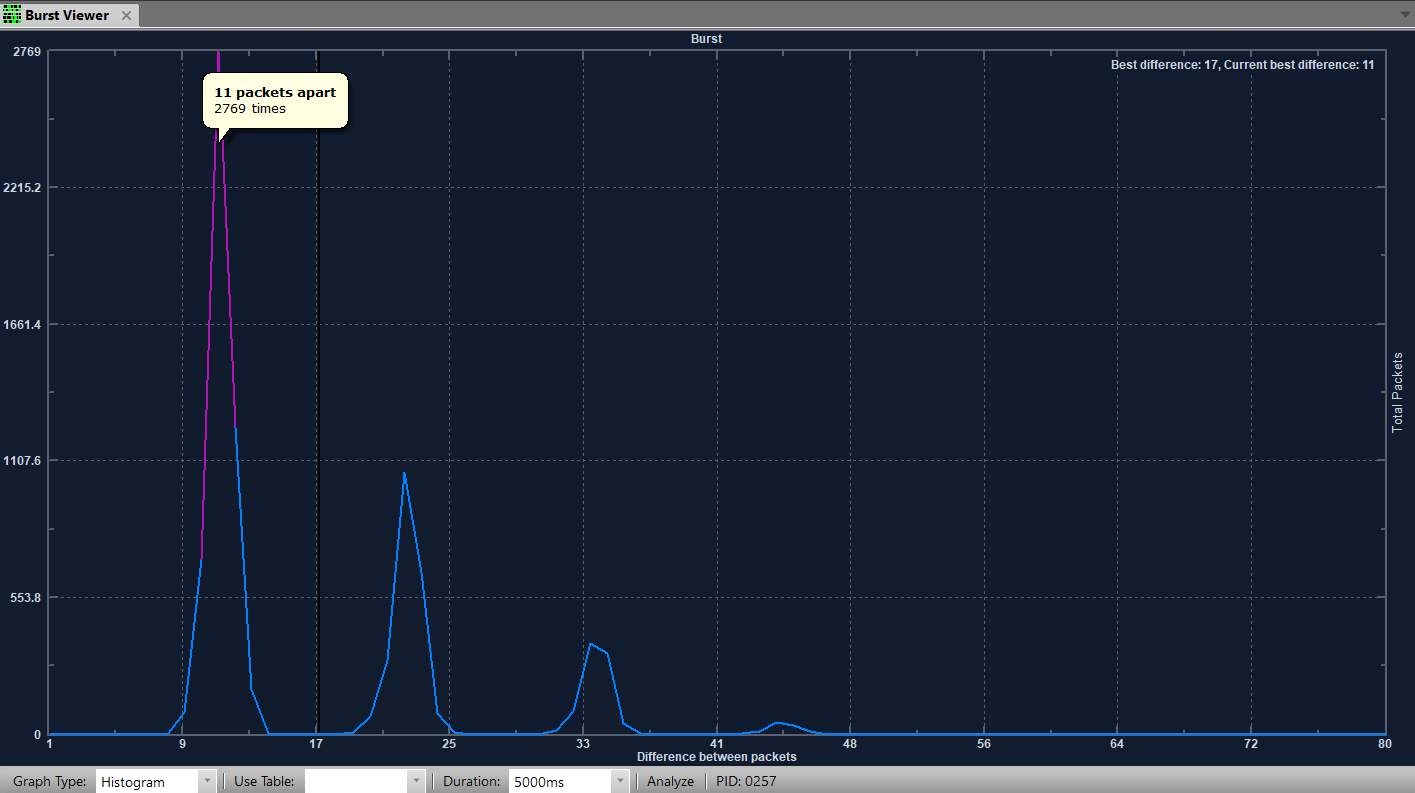

Burst Viewer

Packet spacing as a histogram: how evenly a PID is spread through the multiplex.
Compliance and timing

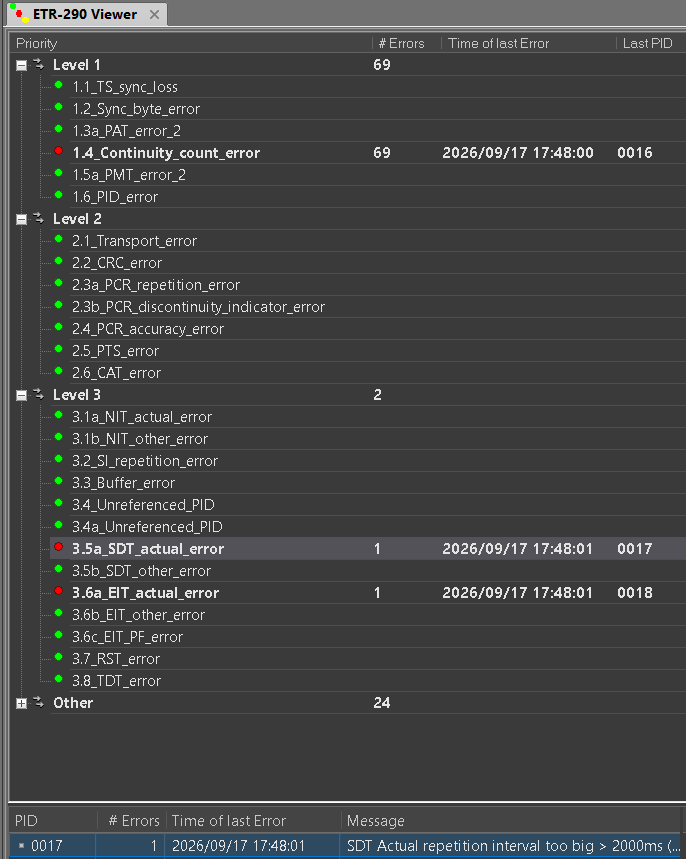

ETR-290 Viewer

All three priority levels, with the error count, the time and the PID that caused it.

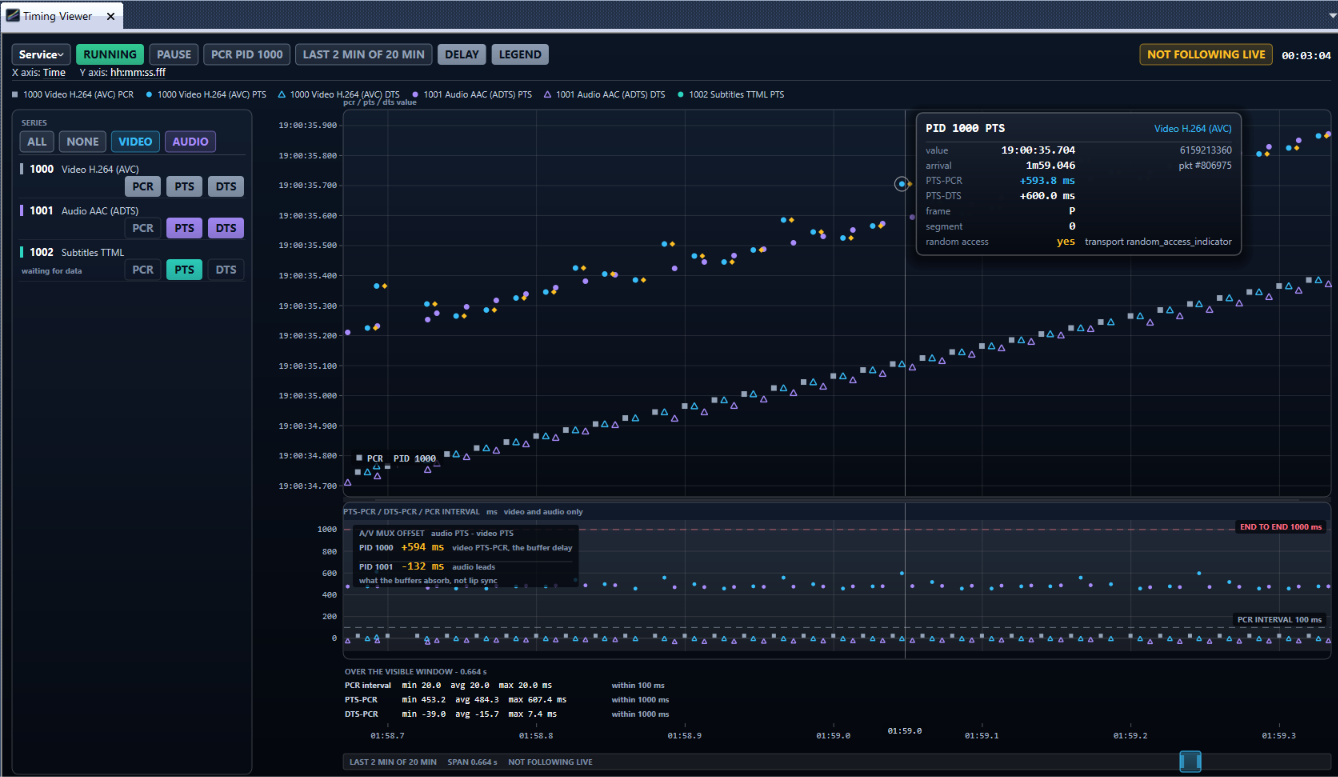

Timing Viewer

PCR, PTS and DTS on one time axis, with the audio/video offset and the buffer delay called out.

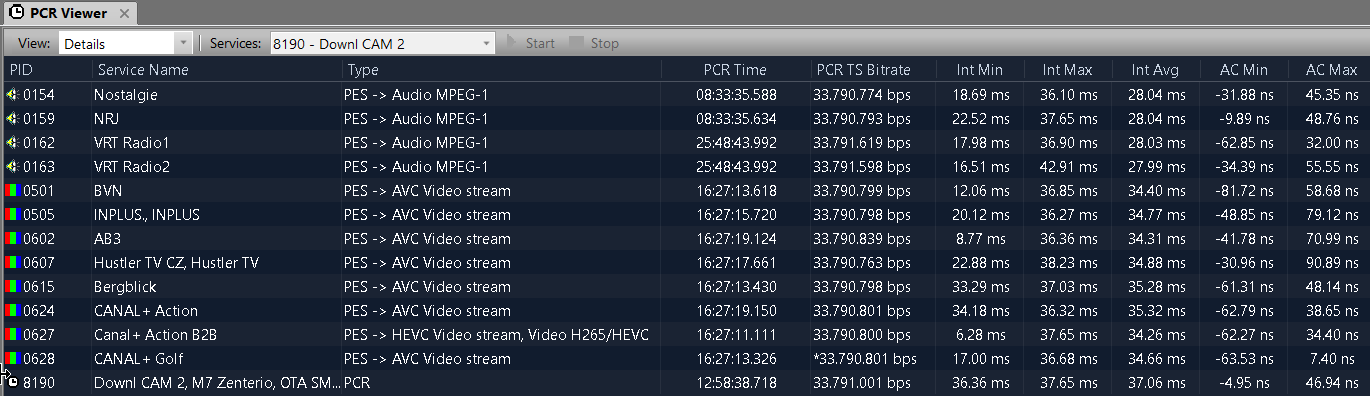

PCR Viewer

PCR interval and accuracy per service, measured to the nanosecond.

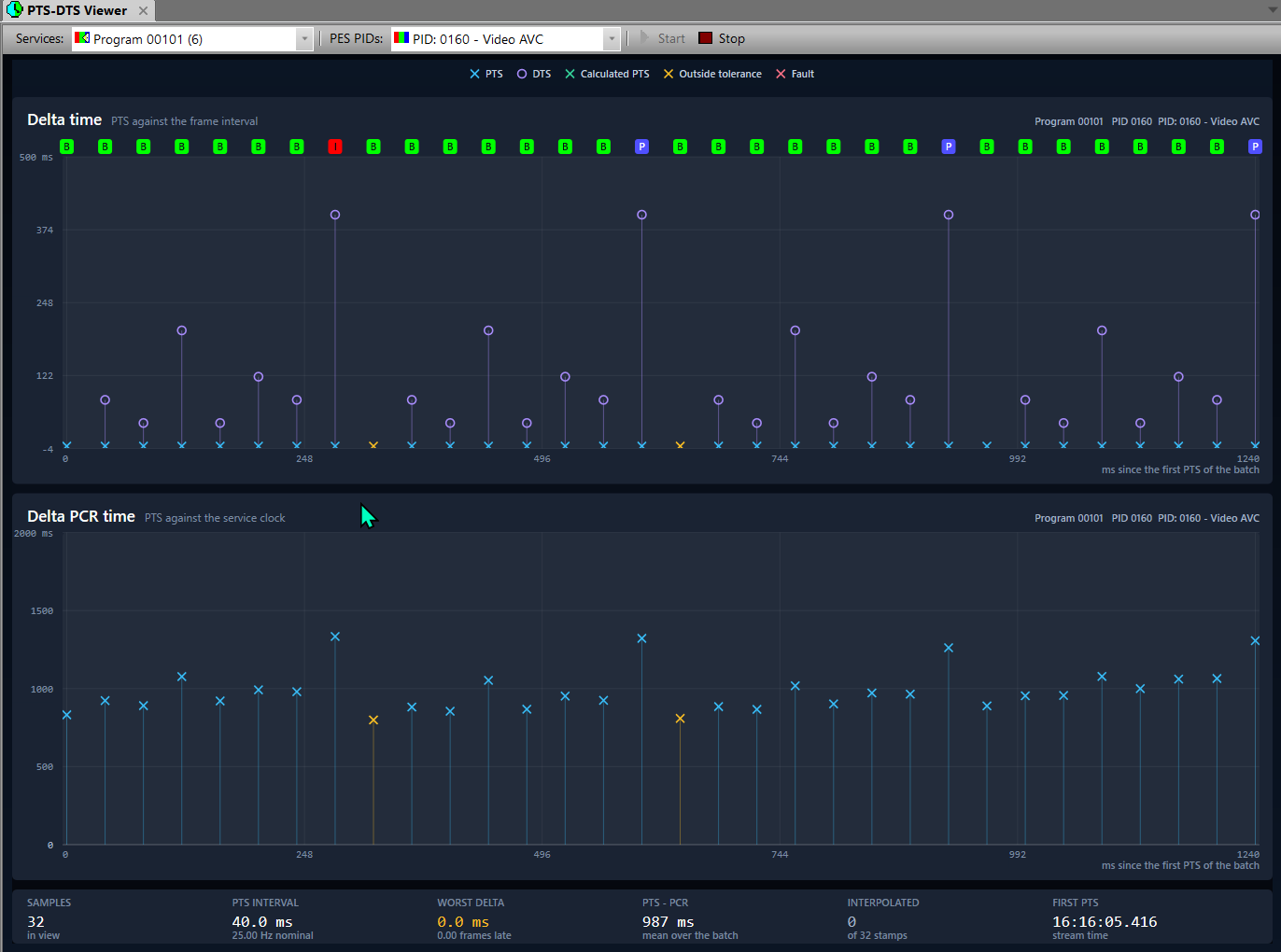

PTS-DTS Viewer

Presentation and decode stamps against the frame interval and against the service clock.

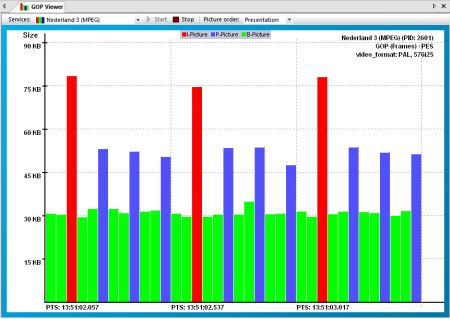

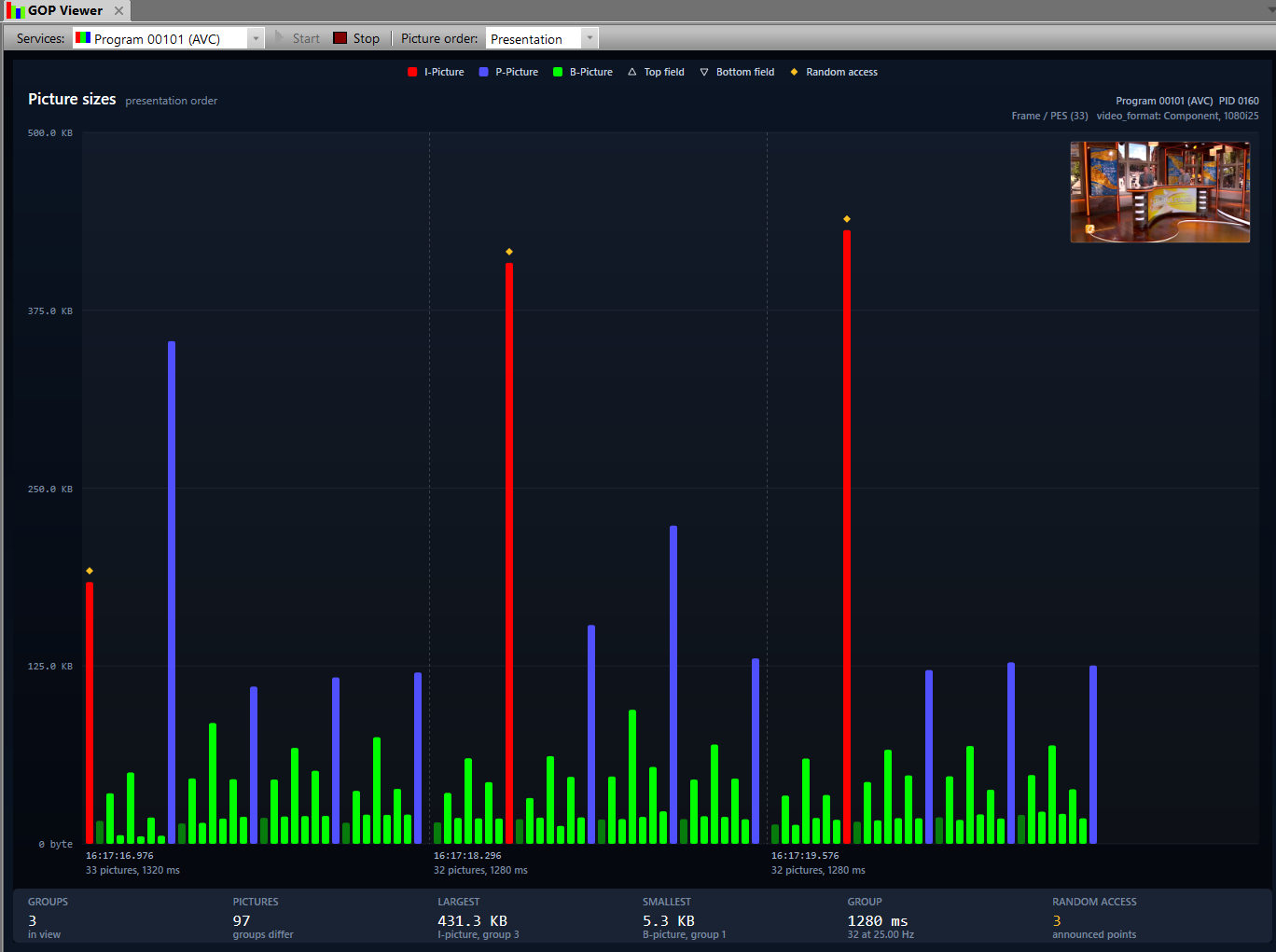

GOP Viewer

Picture sizes in presentation order: I, P and B frames, group length and random access points.

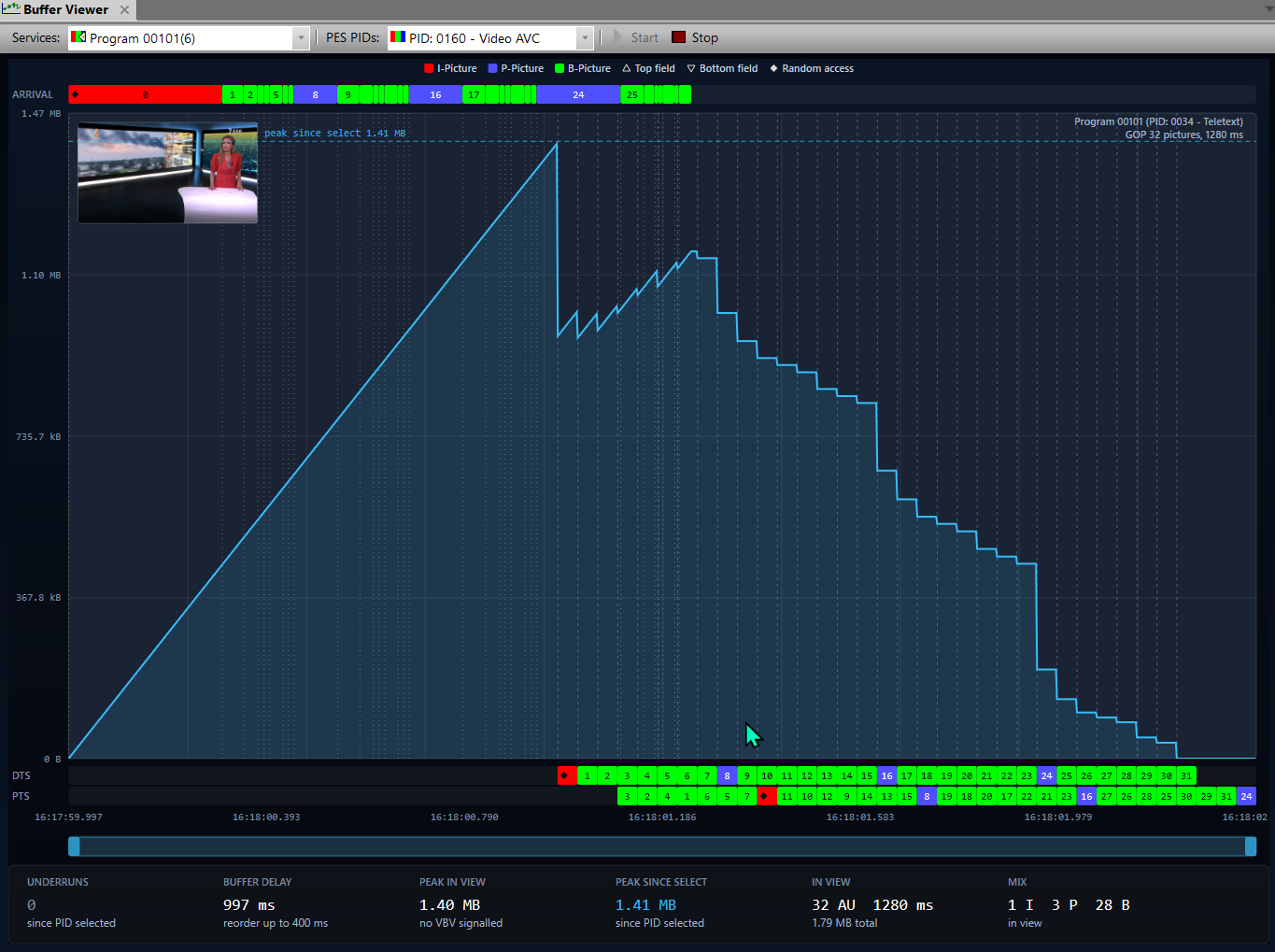

Buffer Viewer

The decoder buffer filling and draining, with underruns, peak level and buffer delay.
Video
Media Viewer

Watch the service while you analyse it, with codec, resolution, frame rate and PIDs on the bar.

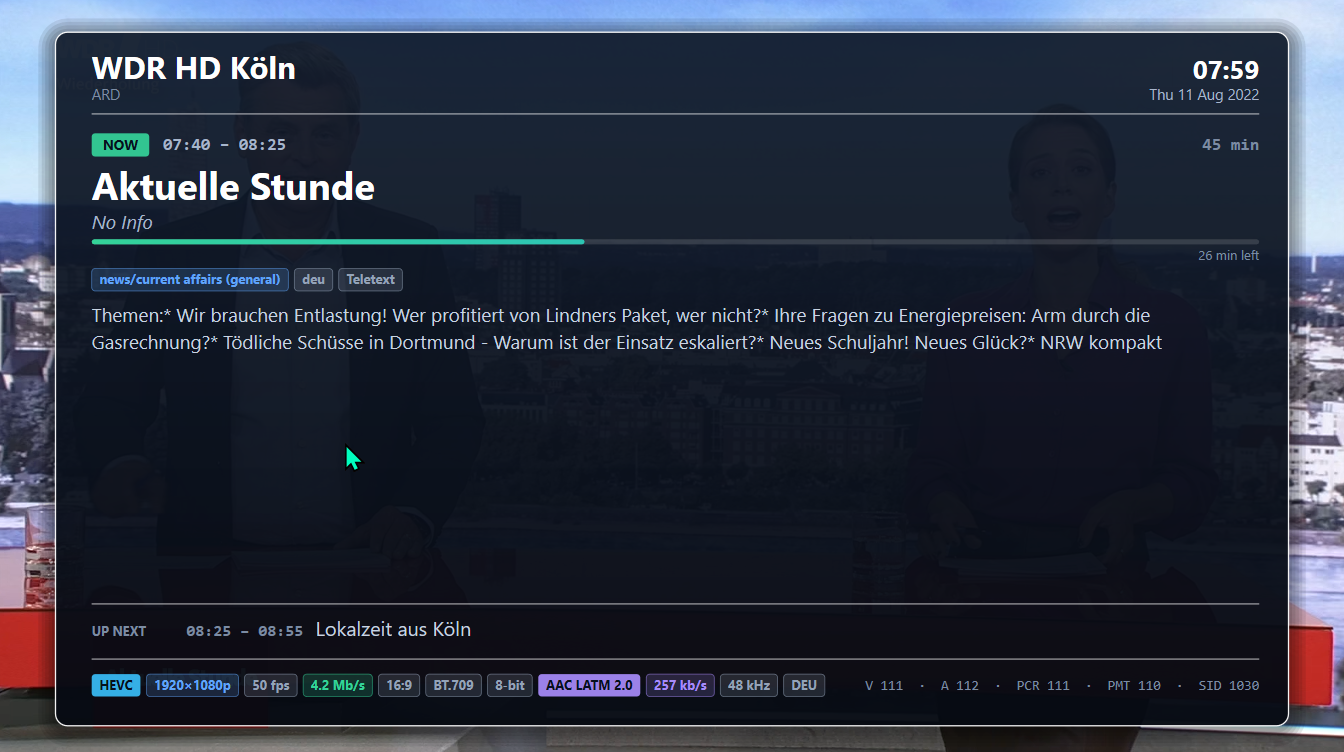

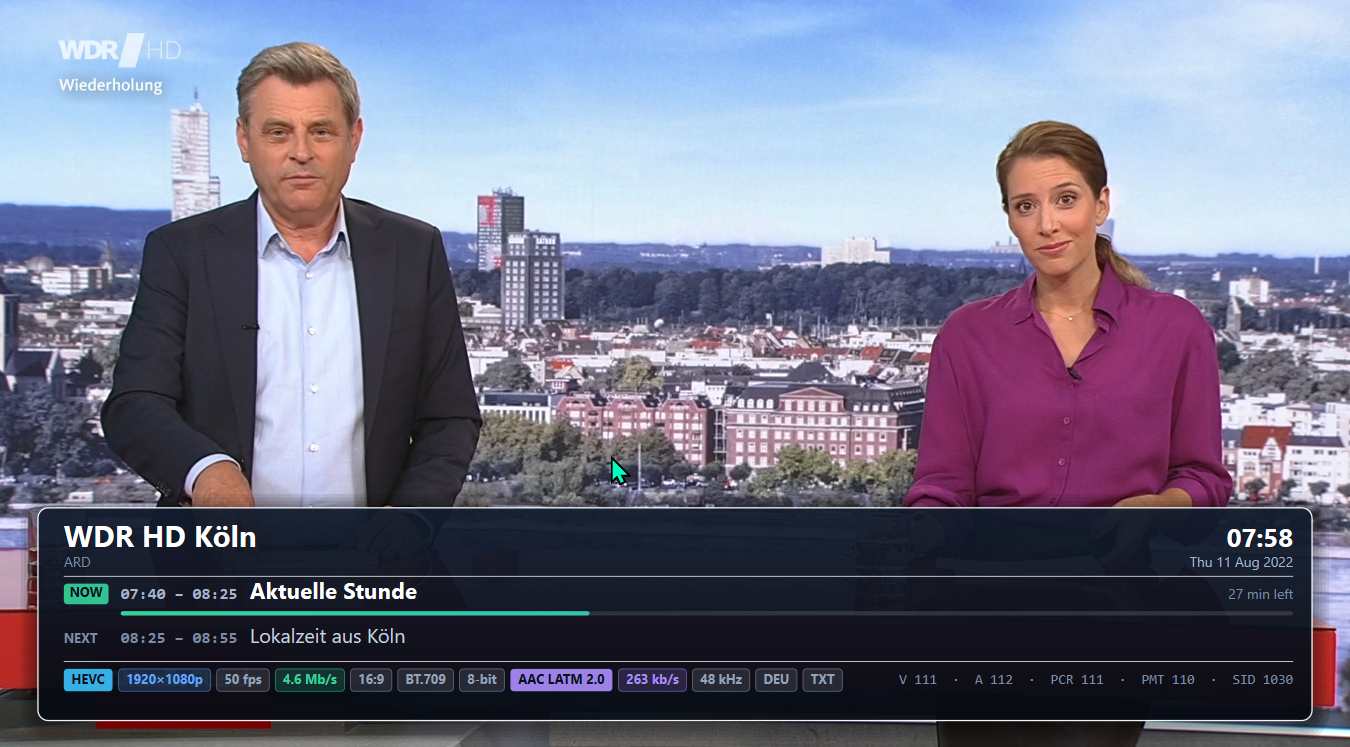

Media Viewer, now and next

The running event, what follows it, and every parameter of the service.

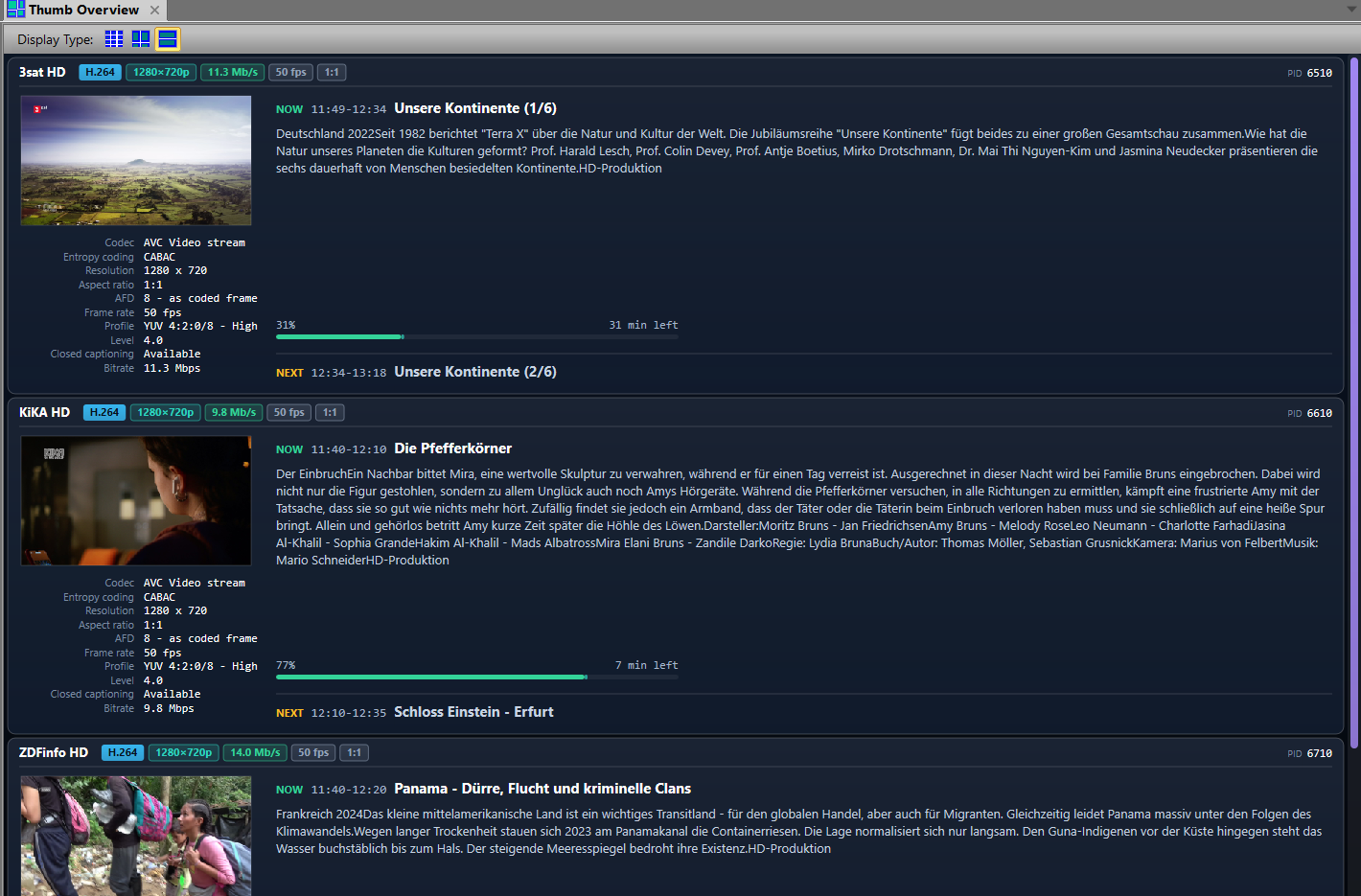

Thumb Overview

Every service as a live thumbnail with its codec, bitrate and current programme.

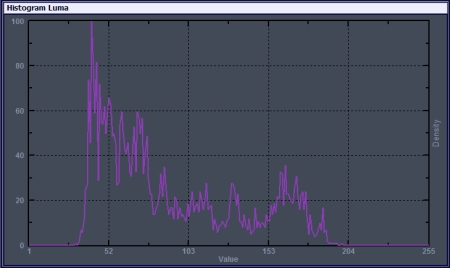

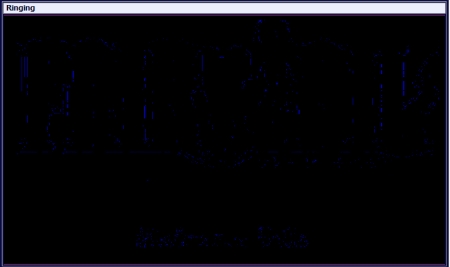

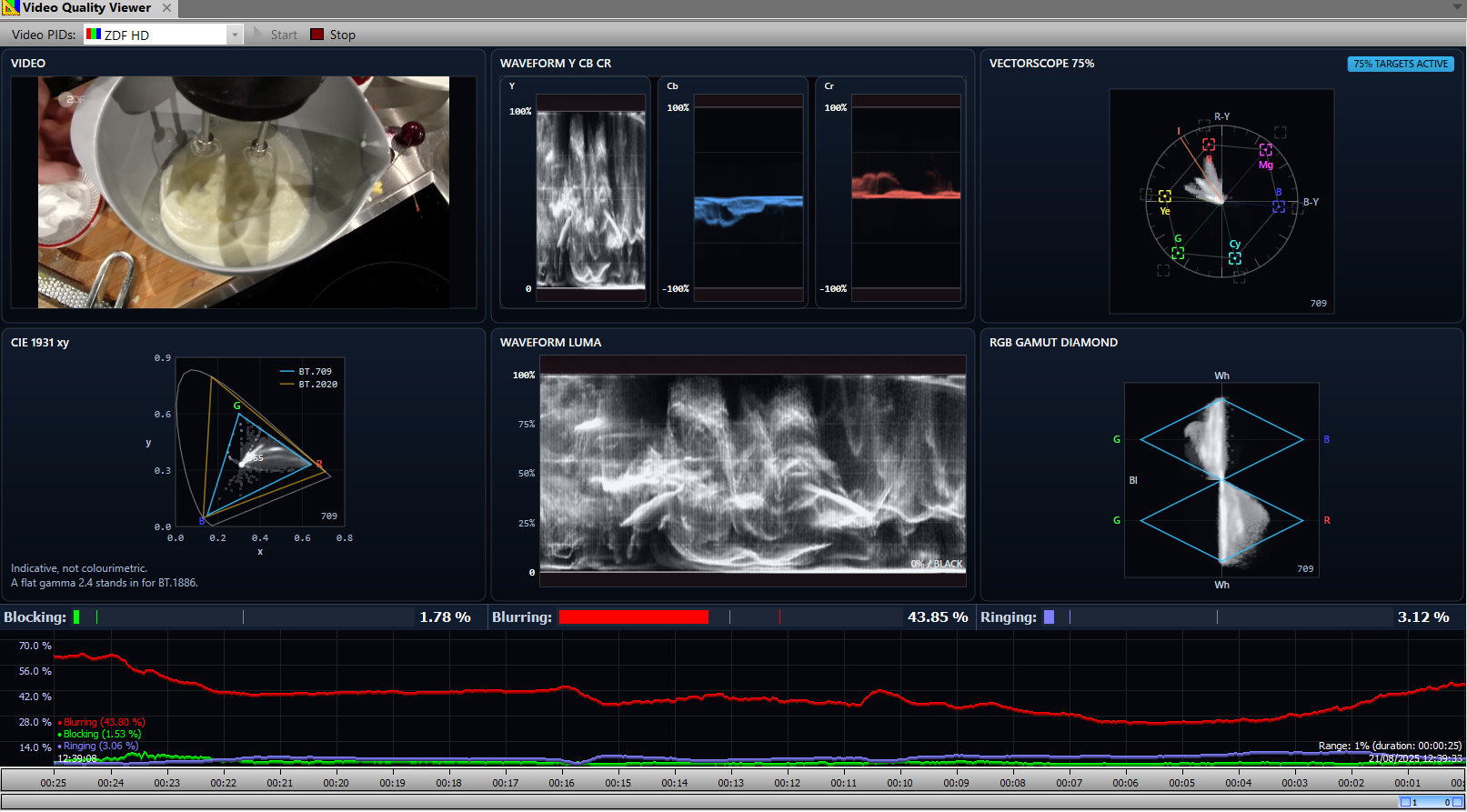

Video Quality Viewer

Video, waveform parade, vectorscope, luma waveform, CIE chart and RGB gamut diamond at once, with blocking, blurring and ringing measured continuously underneath.

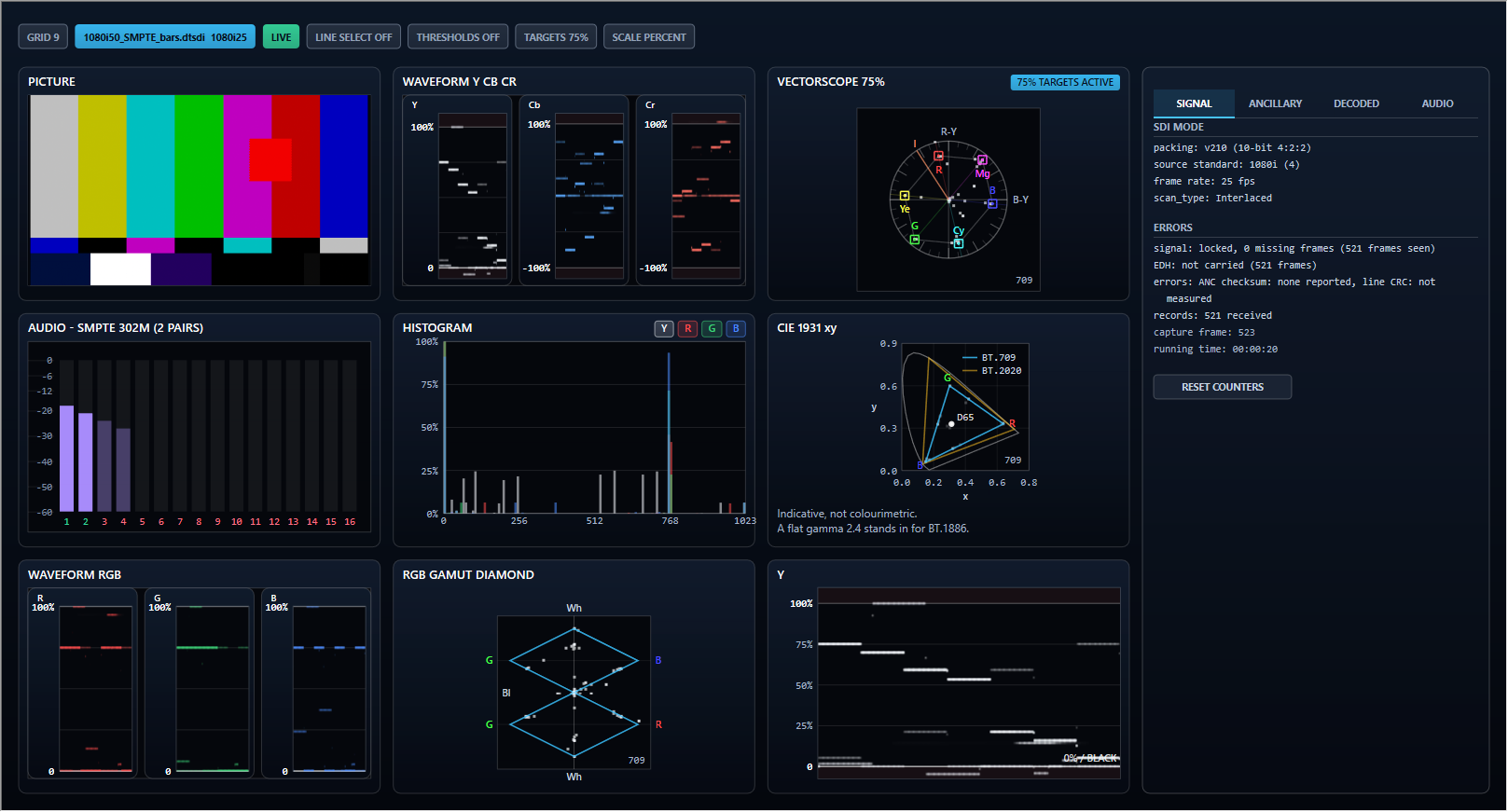

SDI Monitor

The SDI signal opened up: picture, waveform, vectorscope, histogram, RGB gamut and CIE chart, with the SDI mode, embedded audio and the error counters beside them.

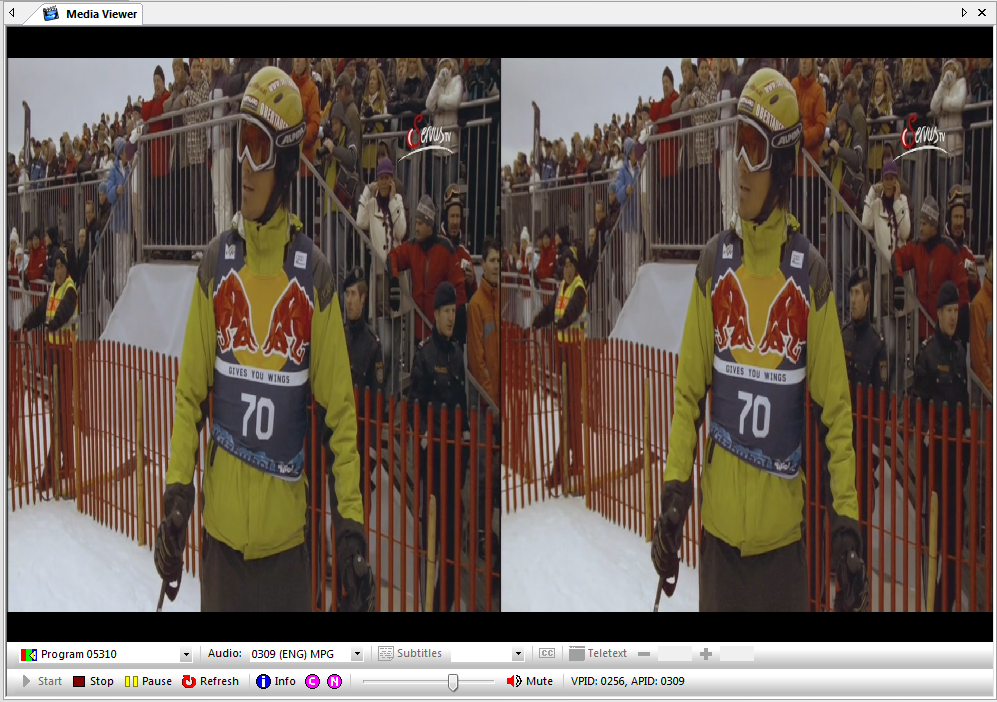

3D support

Side-by-side and top-bottom 3D, shown the way the stream signals it.
Audio

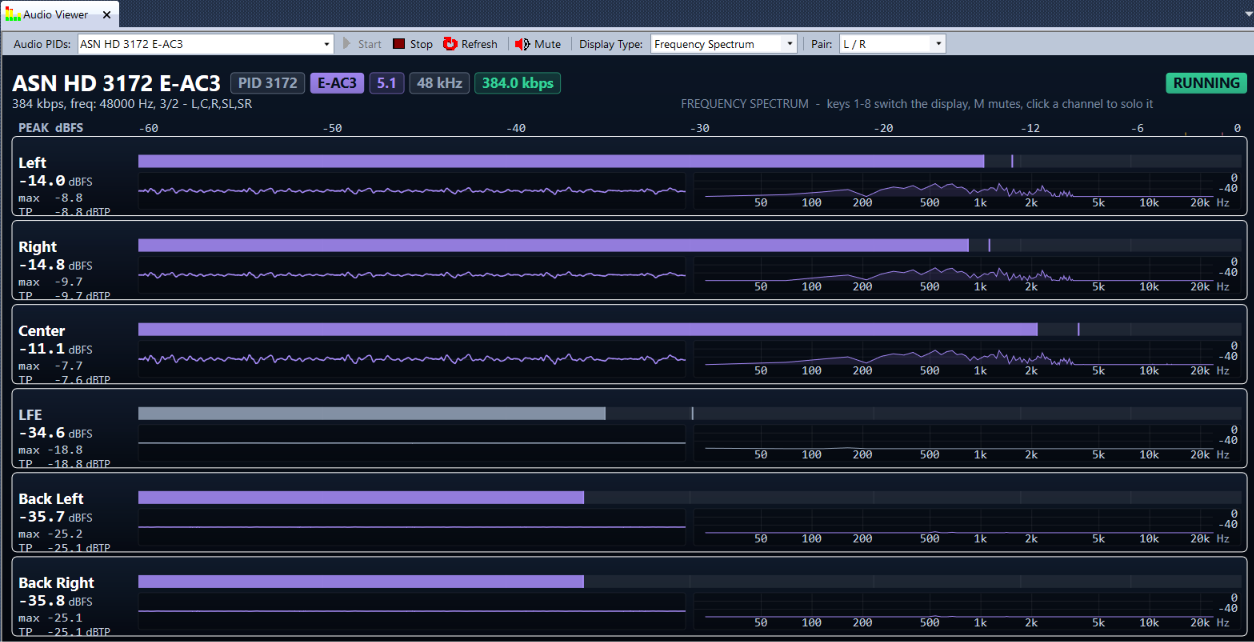

Audio Viewer

Every channel of a 5.1 programme with peak, true peak and frequency spectrum.

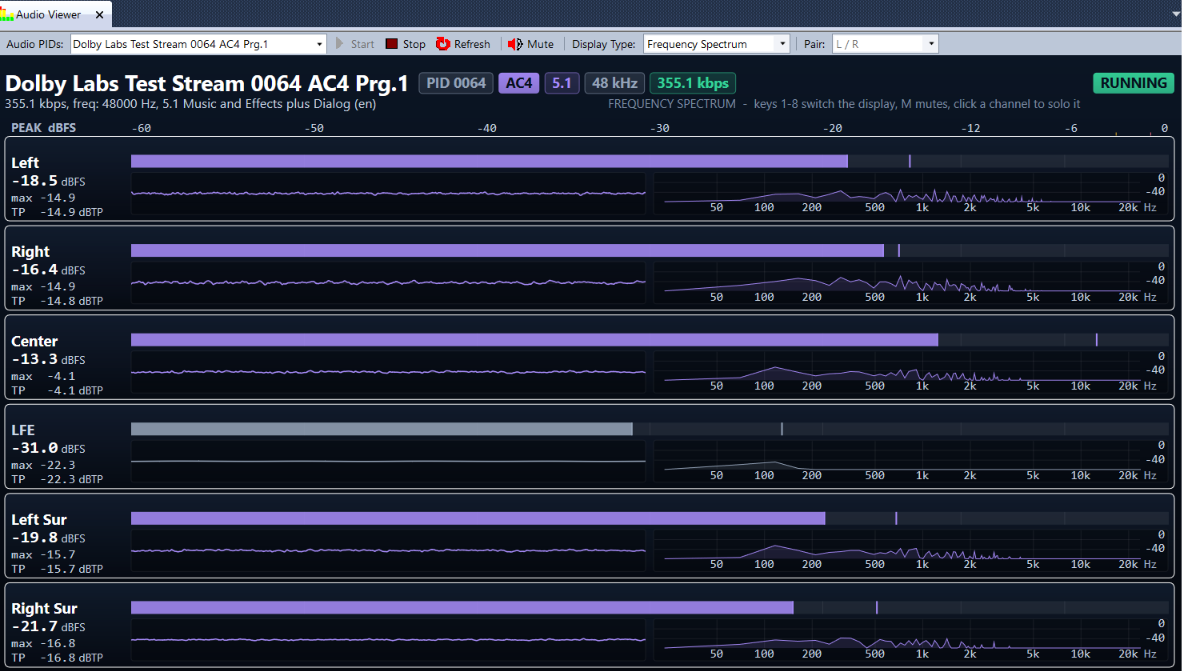

Dolby AC-4

AC-4 presentations decoded and metered channel by channel.

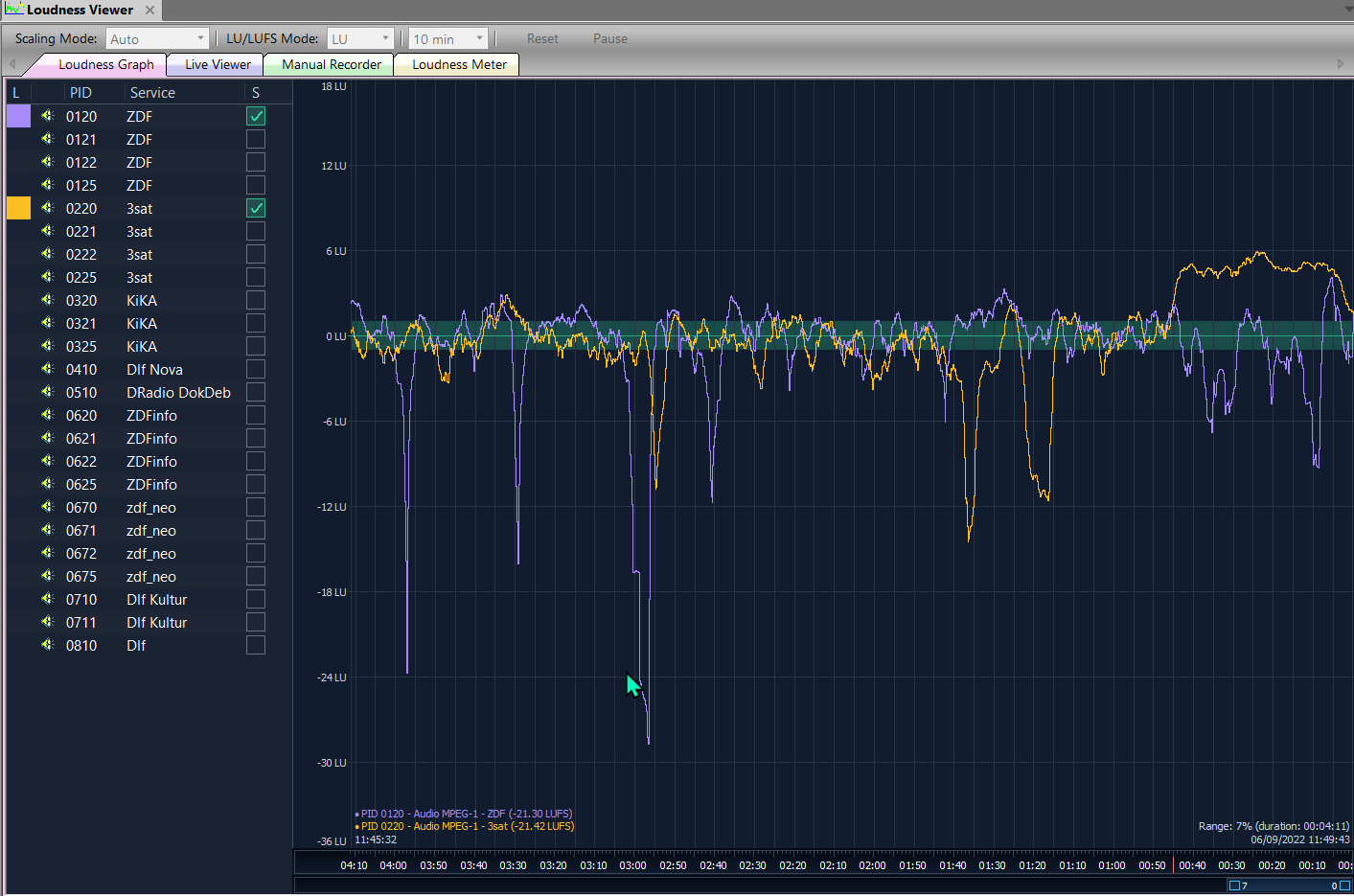

Loudness Viewer

Loudness per service over time against the target zone, to EBU R128 and ITU BS.1770.

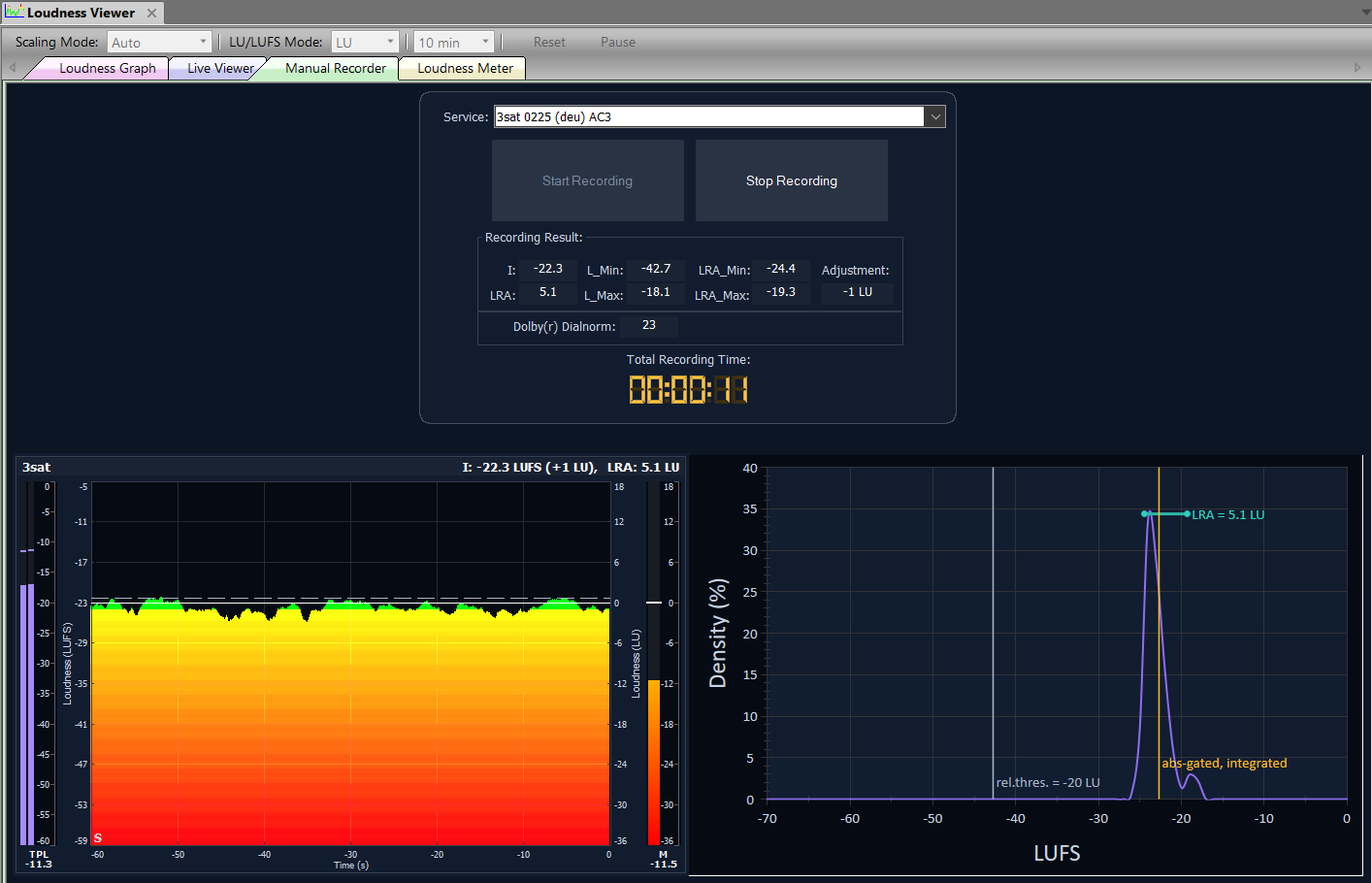

Loudness Meter

Integrated loudness, range and true peak, with the measured dialnorm beside it.
Data and services

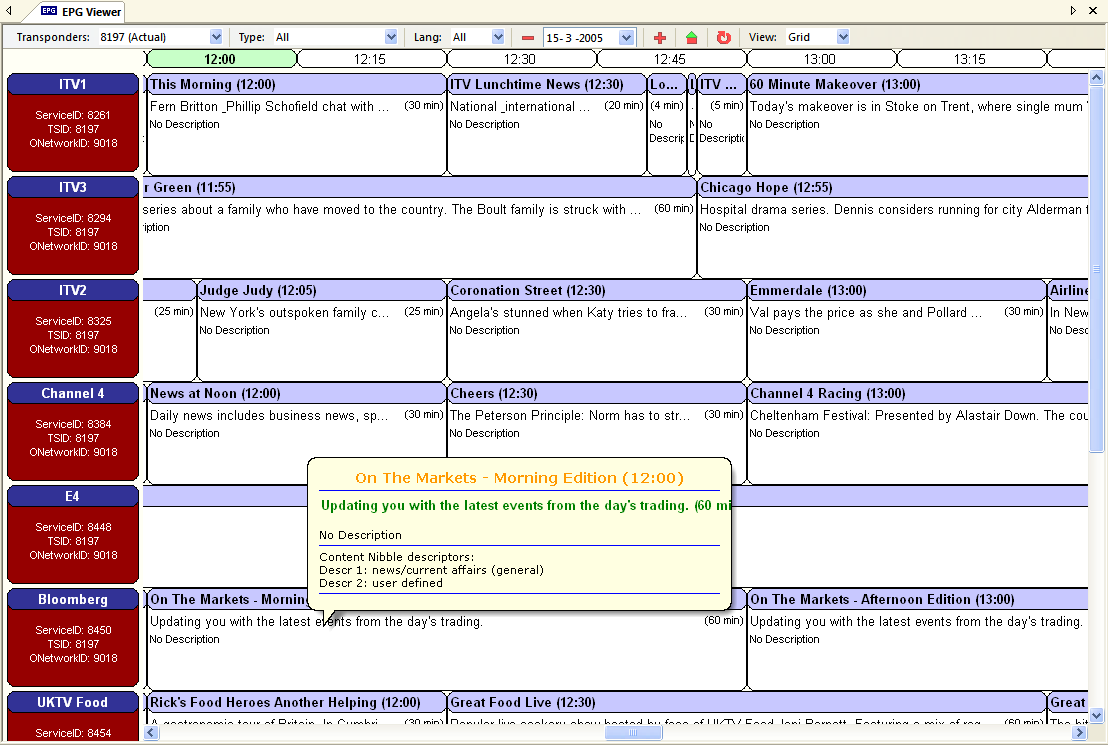

EPG Viewer

The electronic programme guide as broadcast, with every event descriptor behind it.

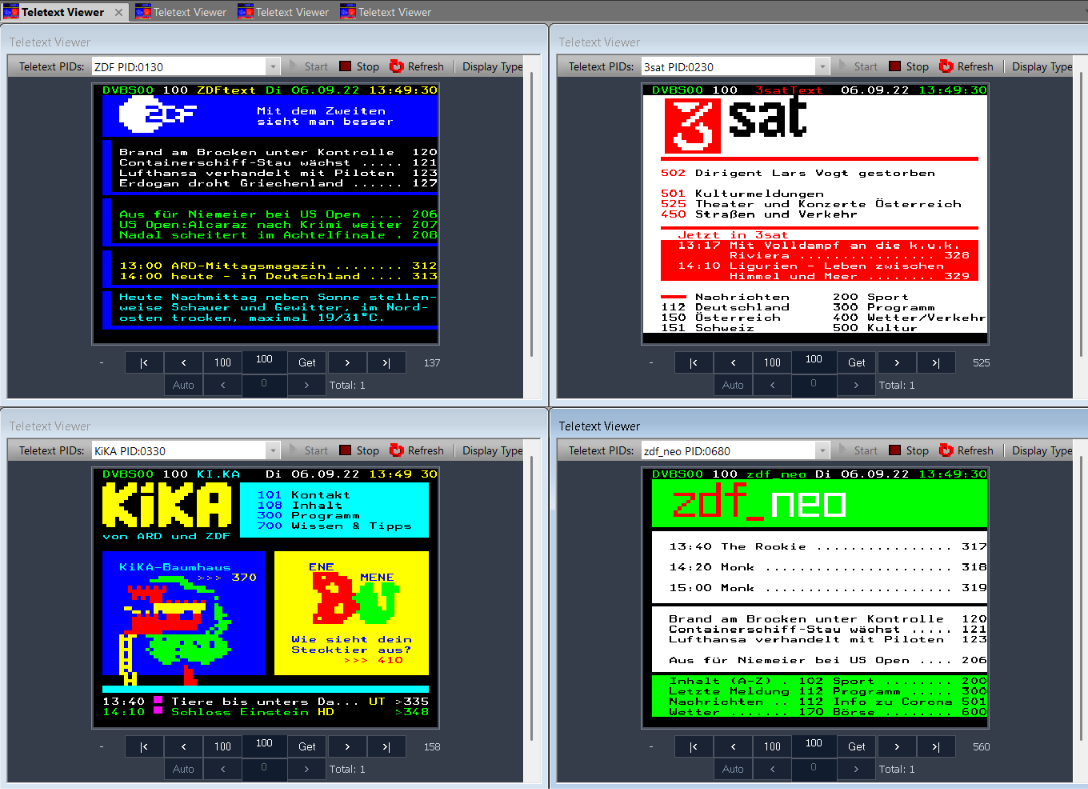

Teletext Viewer

Four teletext services rendered at once, exactly as a receiver would draw them.

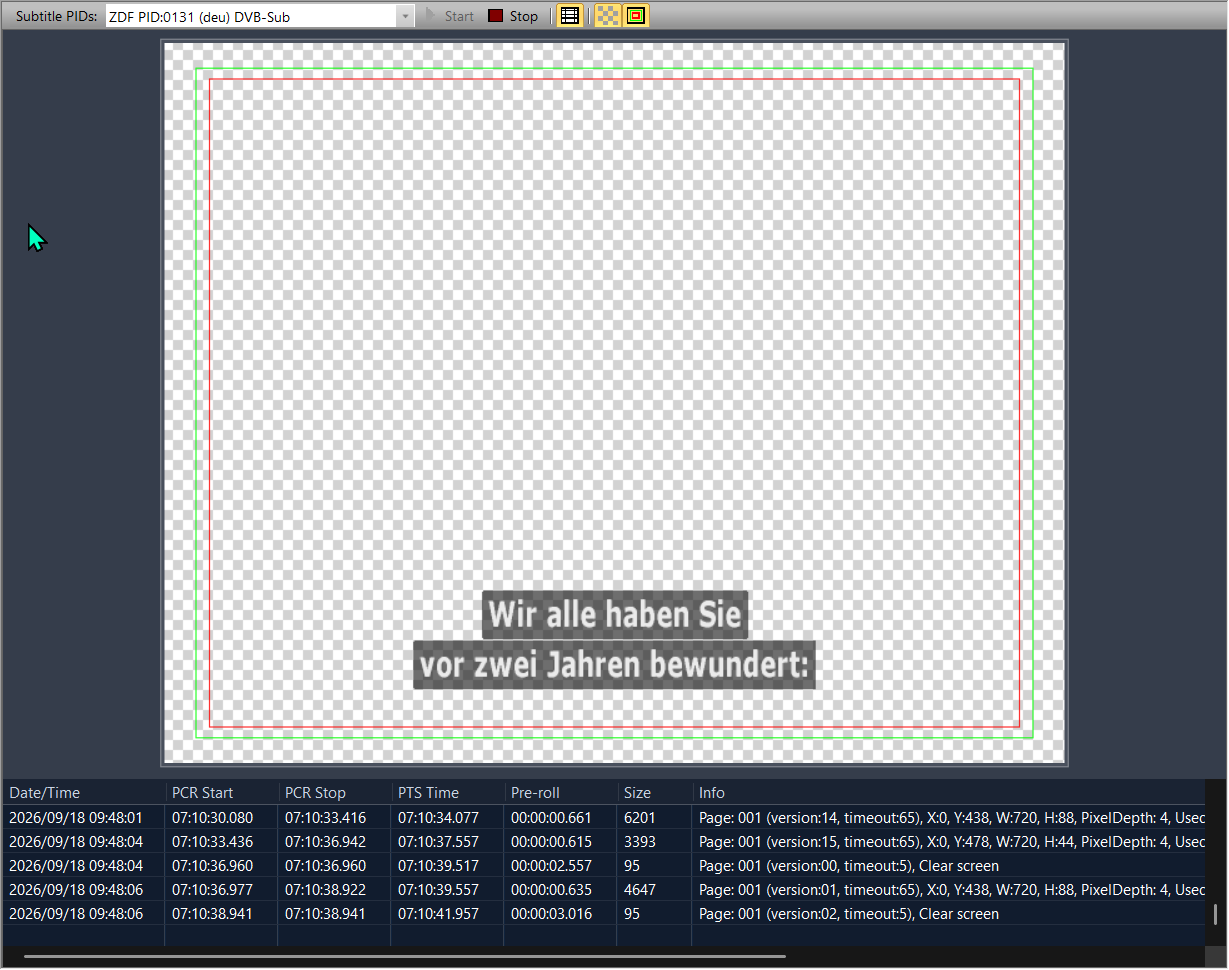

Subtitle Viewer

DVB subtitles rendered in place, with position, timing and pre-roll per page.

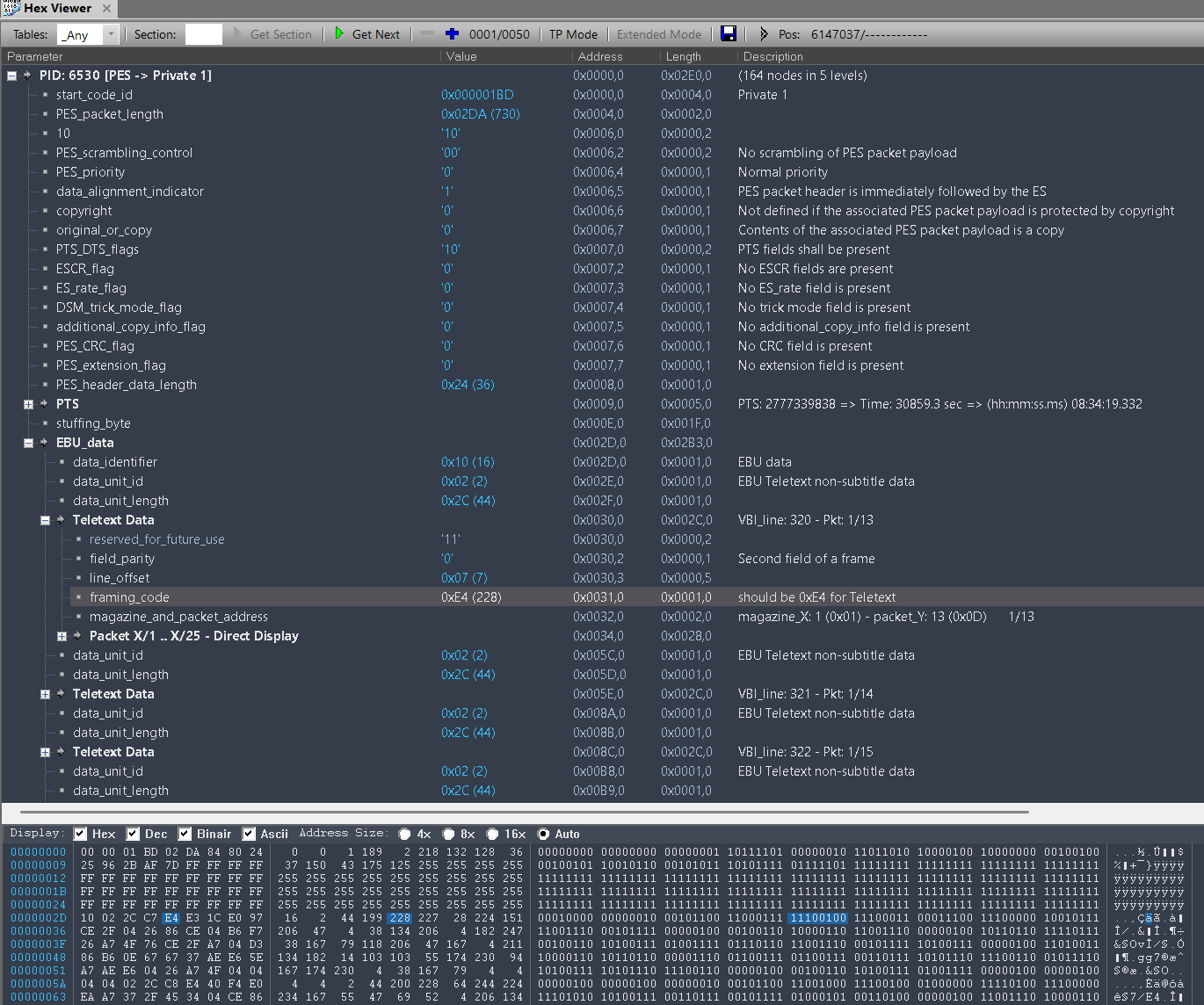

Hex Viewer

Down to the bit: every field named, explained and linked to its bytes.

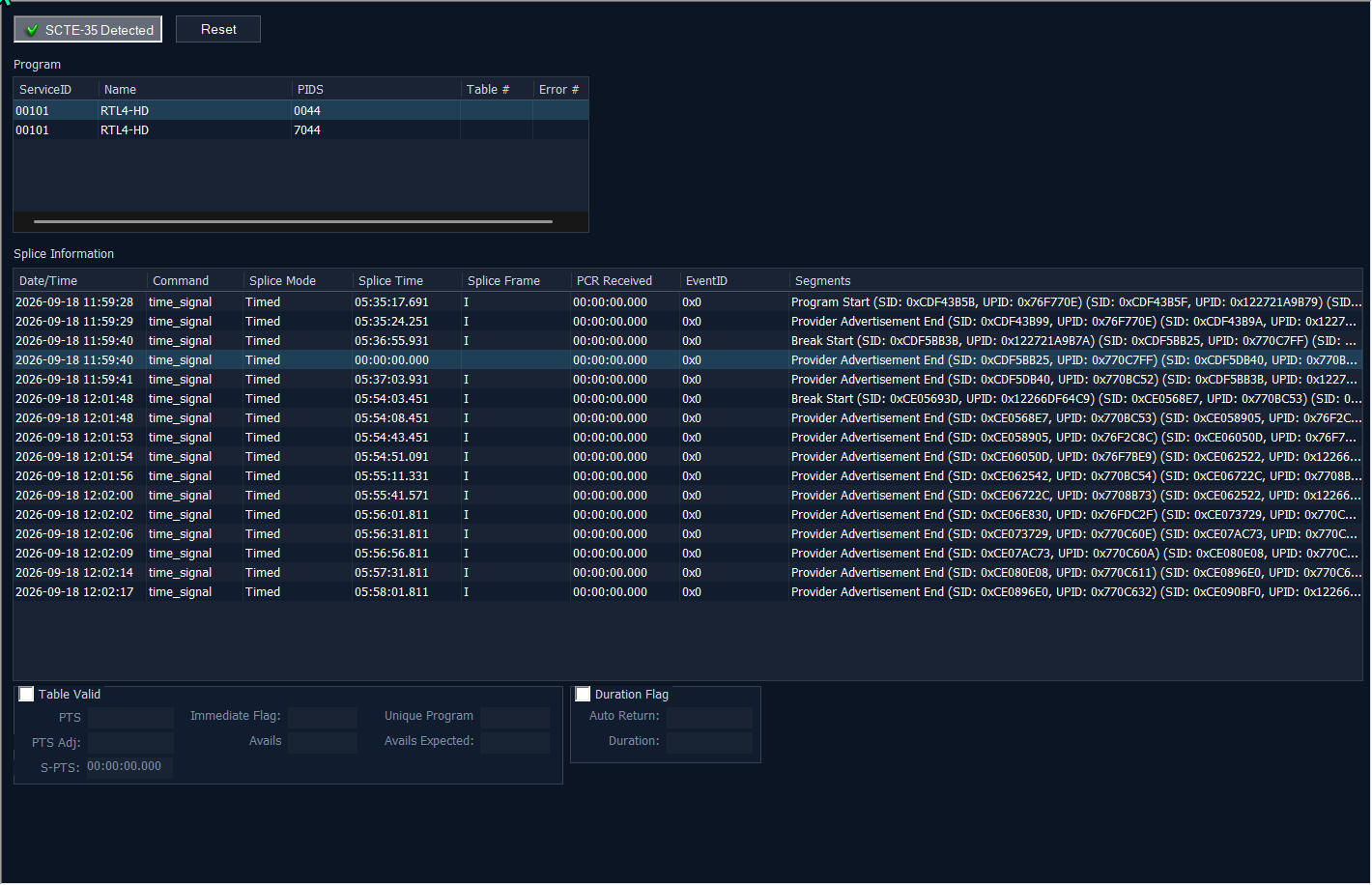

SCTE-35 Viewer

Splice commands with their segmentation descriptors, upids and timing.

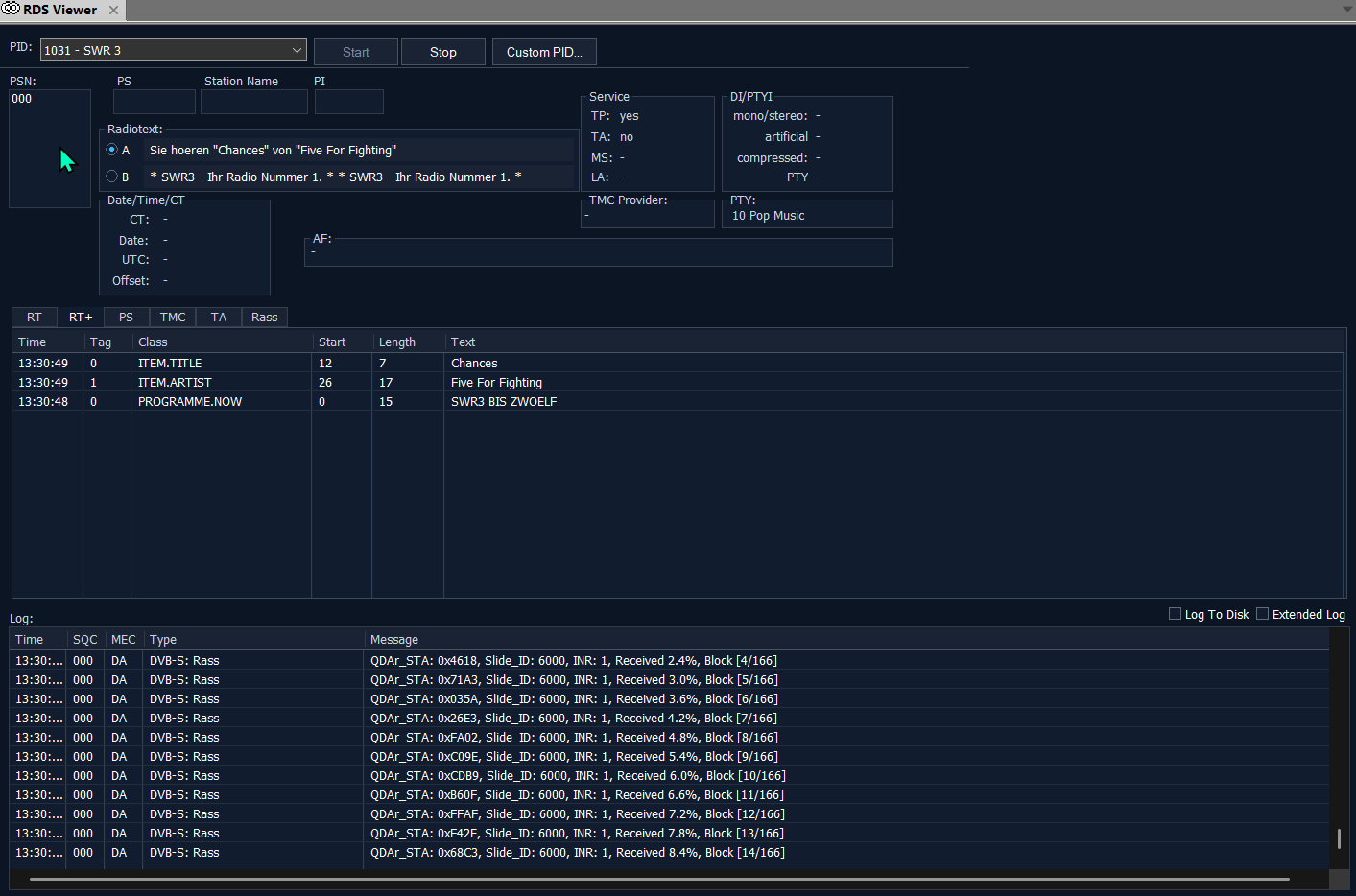

RDS Viewer

Radio text, programme service, TMC and RT+ decoded from the audio stream.

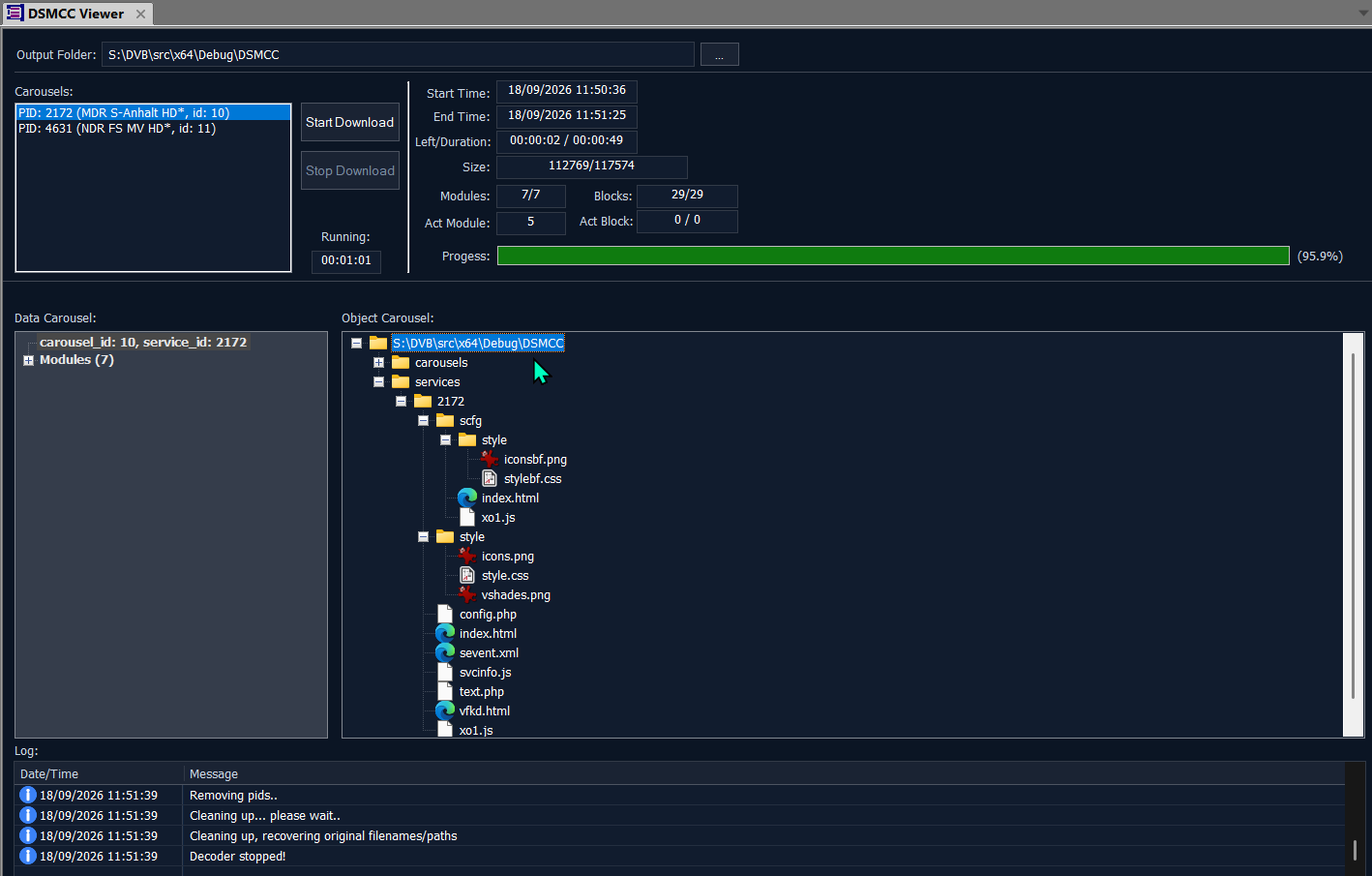

DSM-CC Viewer

Object and data carousels downloaded to disk, with the file tree rebuilt.

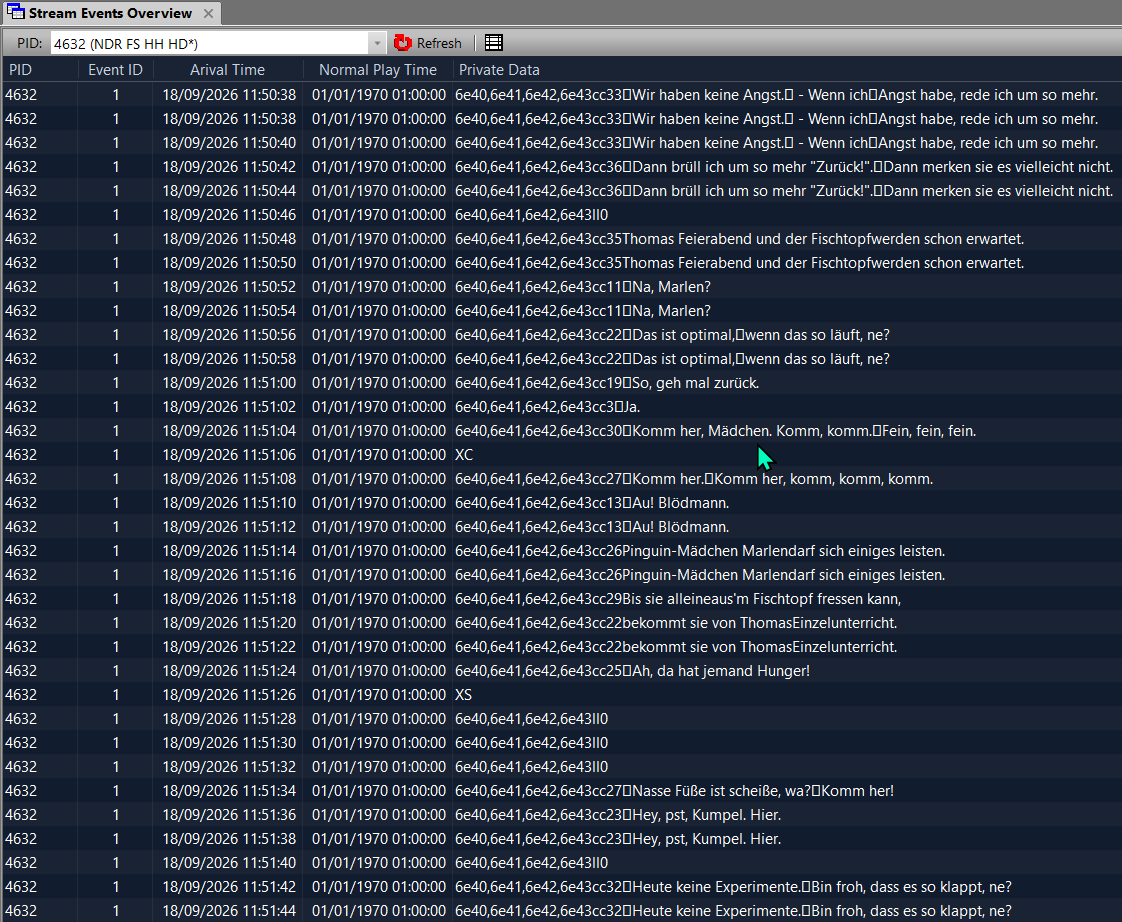

Stream Events

DSM-CC stream events with their arrival time, play time and private data.

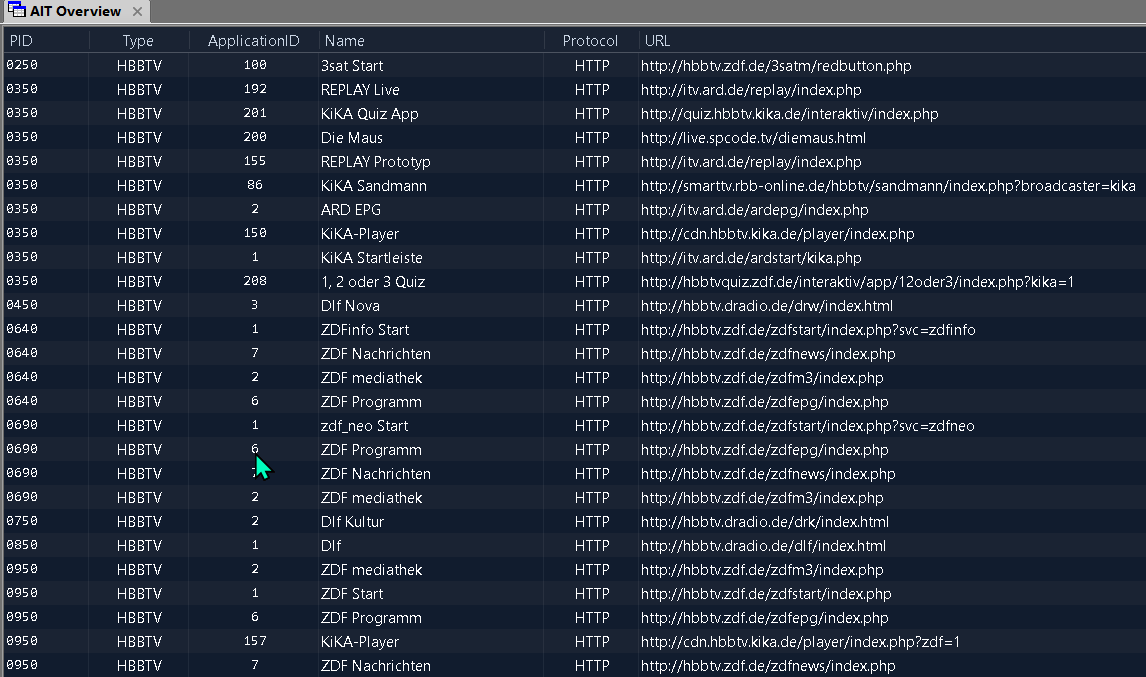

AIT Overview

HbbTV applications signalled in the stream, with their protocol and URL.

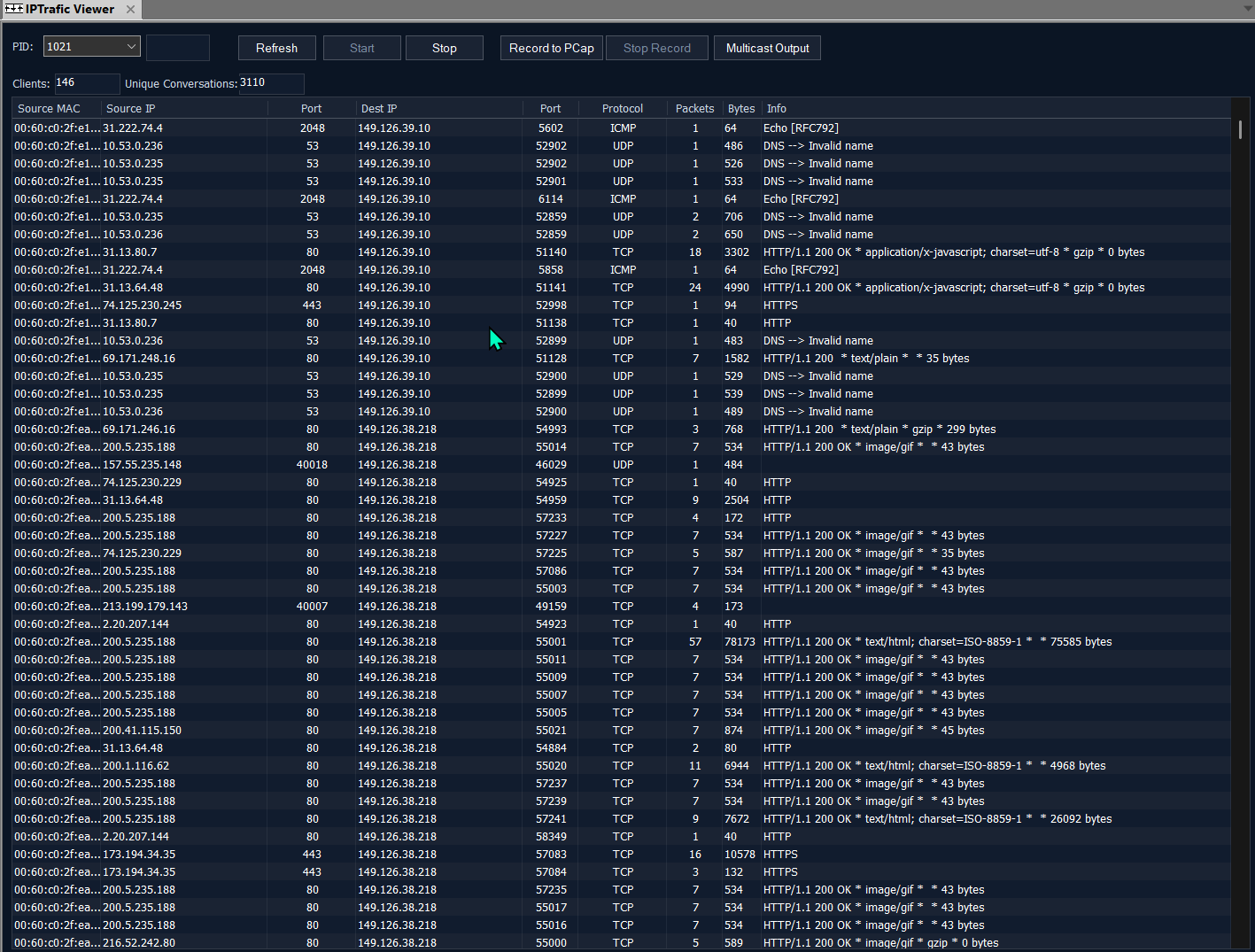

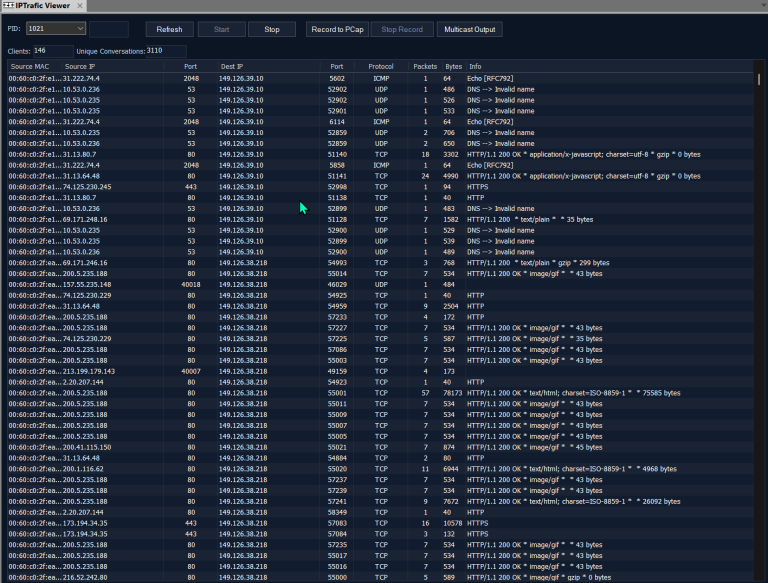

IP Traffic Viewer

IP carried in the stream, per conversation, recordable straight to PCAP.
Delivery systems

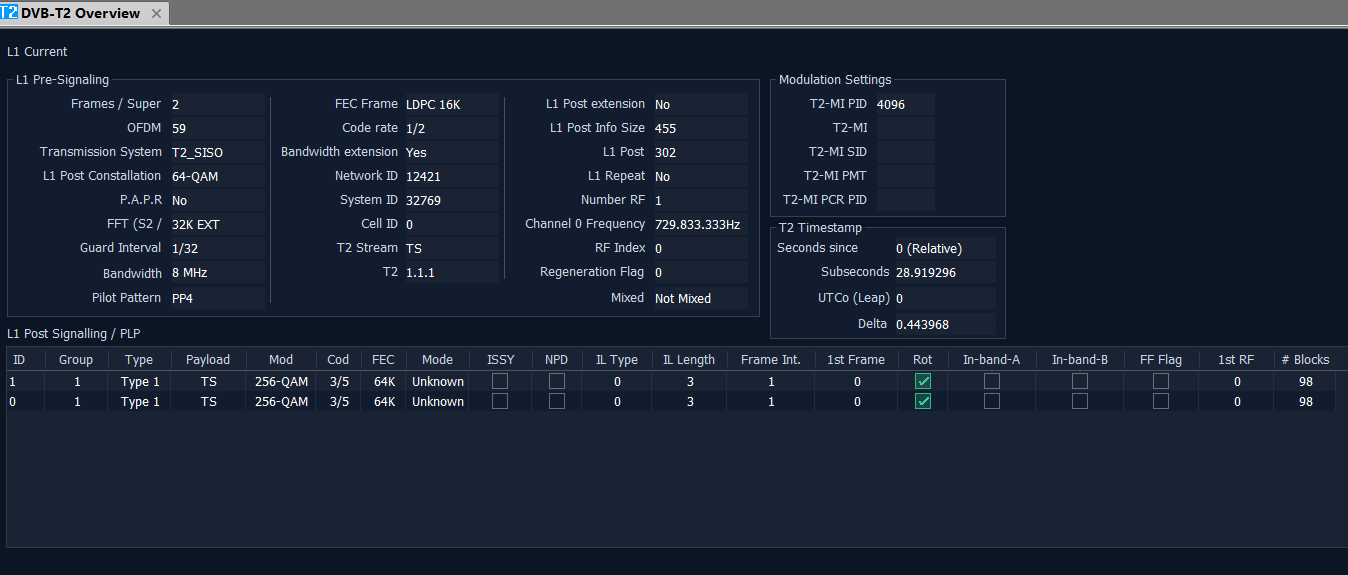

DVB-T2 Viewer

T2 L1 pre- and post-signaling, PLP by PLP, from the T2-MI stream.

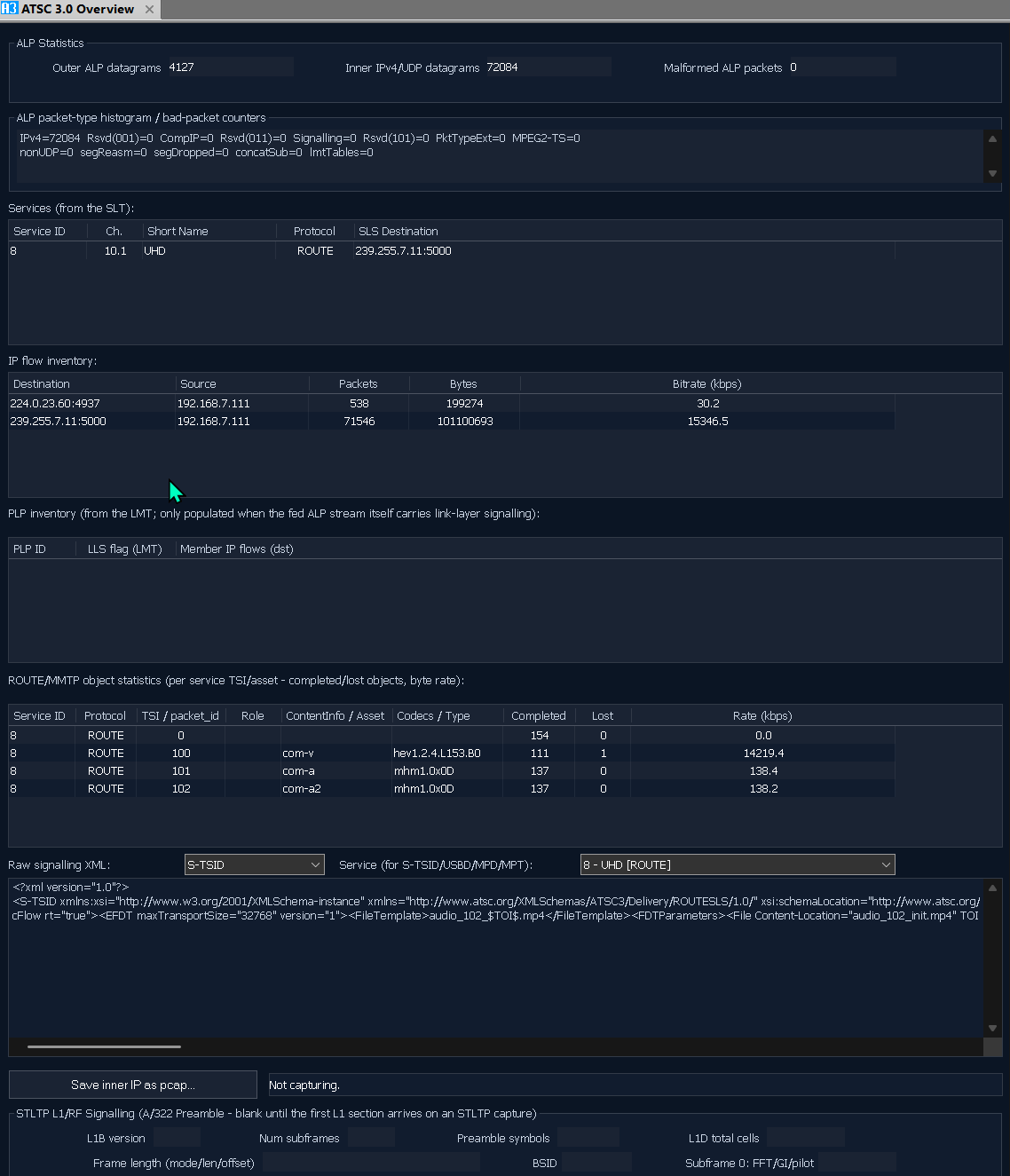

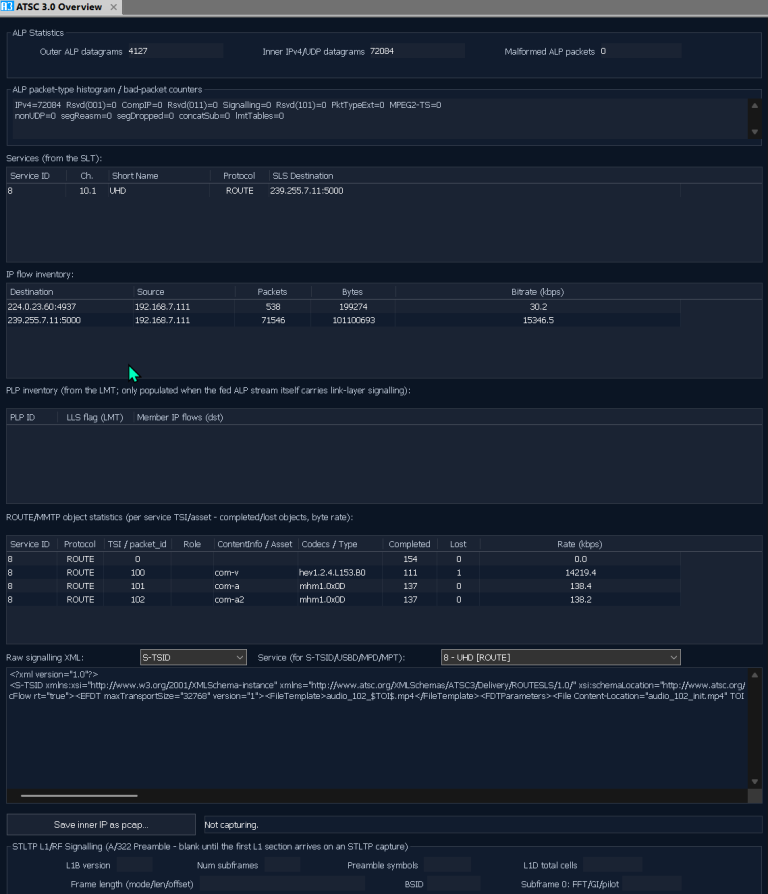

ATSC 3.0 Overview

An ATSC 3.0 broadcast opened up: the services the SLT announces, the IP flows inside the ALP stream, and the ROUTE objects each service delivers, down to the codec each one uses.
